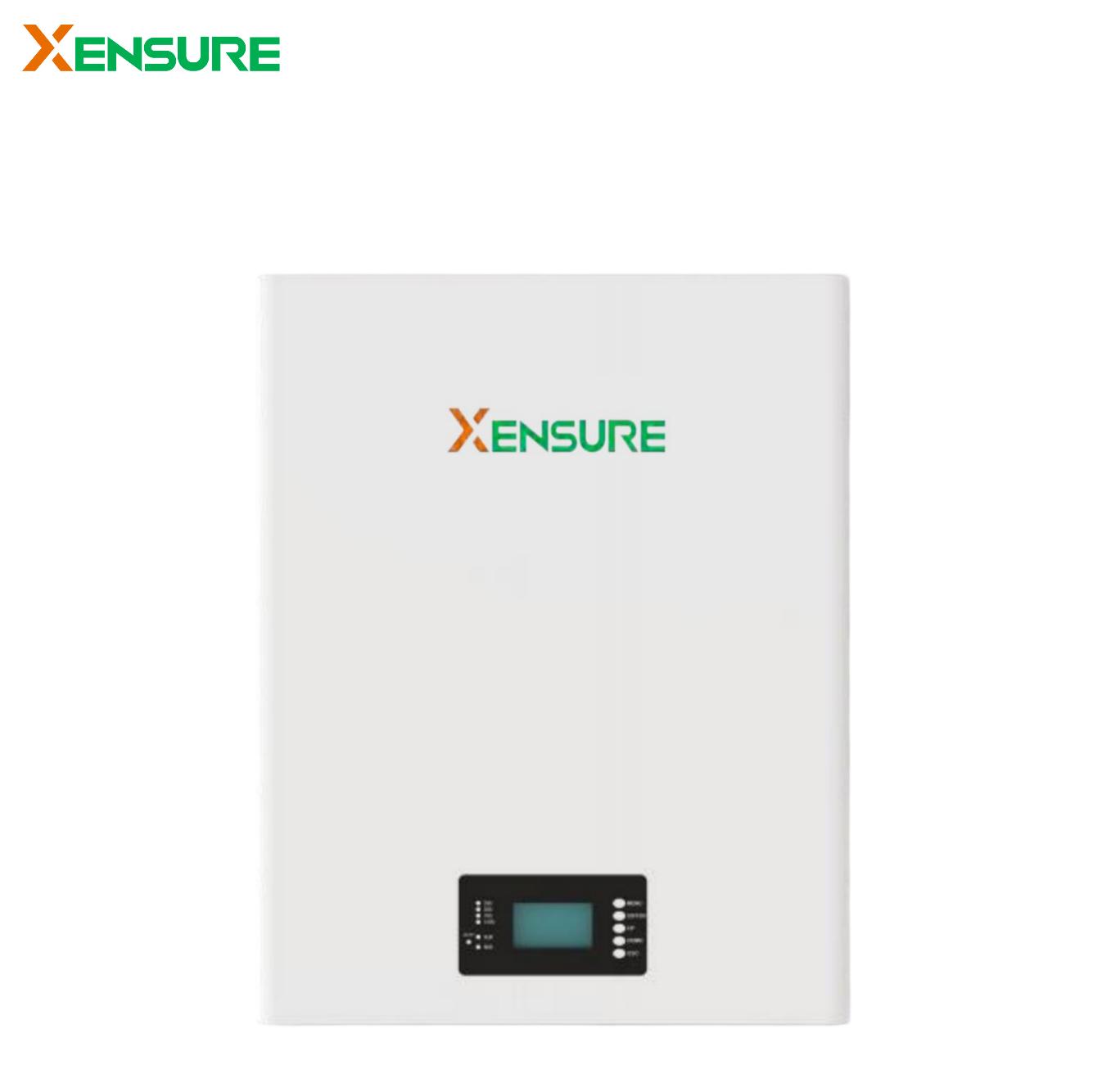

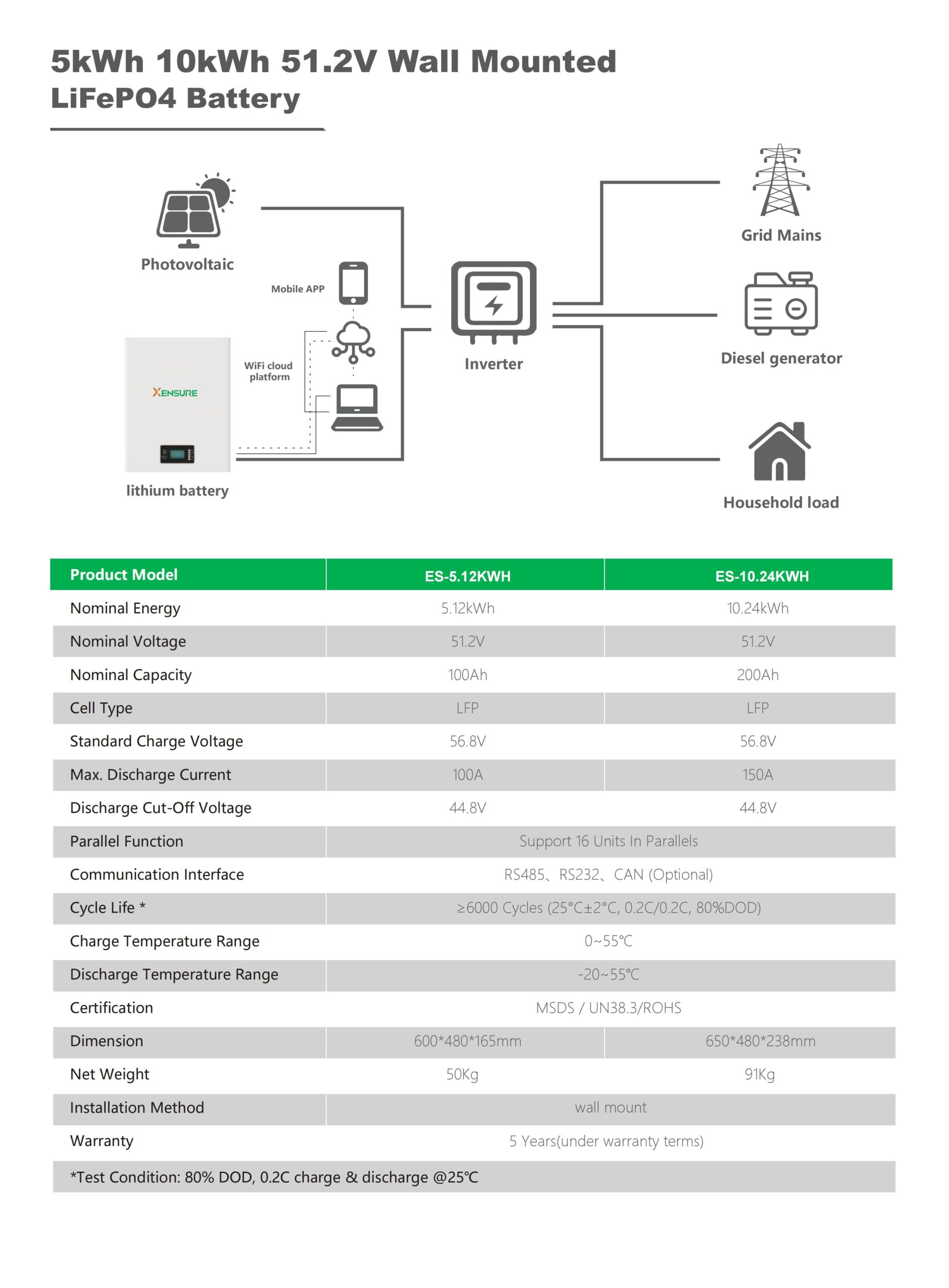

ES-5.12KWH / ES-10.24KWH (51.2V) Standard Wall-Mounted LiFePO4 Battery

  • Mainstream 48V/51.2V Design: The industry-standard voltage platform for seamless integration with high-performance 48V hybrid inverters.

  • Massive Energy Resilience: Available in 5.12kWh (100Ah) and 10.24kWh (200Ah) options to fit any home backup strategy.

  • Extreme Longevity: Rated for ≥6,000 cycles at 80% DOD, providing over 10 years of maintenance-free service.

  • Rapid Energy Transfer: Supports high-speed 1C charging and discharging for fast system response.

  • Intelligent BMS Coordination: Simultaneous communication with major inverter brands including Deye, Growatt, and Solis.

  • Space-Saving Wall Mount: Minimalist profile designed to optimize installation space in garages or utility rooms.

ENQUIRY!
Categories: ,
Description

The 51.2V ES Series (5.12kWh and 10.24kWh) is the cornerstone of modern residential energy storage. Operating on the high-efficiency 48V/51.2V platform, these batteries are optimized for the world’s most popular hybrid inverters. Whether you choose the compact 5kWh model for essential backup or the powerful 10kWh unit for full-house resilience, the ES series delivers stable, safe, and clean LiFePO4 energy. Built for durability and ease of installation, this series empowers homeowners to take control of their energy destiny with professional-grade technology.

Key Features:

  • Reliable Safety Suite: Integrated smart BMS provides multi-level protection against over-voltage, over-current, and temperature extremes.

  • Seamless Inverter Interactivity: Features standardized CAN and RS485 ports for “plug-and-play” communication with mainstream power conversion systems.

  • High Efficiency Performance: Optimized for low self-discharge and high cycle efficiency (≥97%), ensuring every watt is used effectively.

  • Rugged Modern Construction: Housed in a durable metal enclosure with a clear status display for instant system oversight.

Application Scenarios:

  • Standard Residential Solar: The perfect match for mainstream 5kW-10kW 48V hybrid solar systems.

  • Whole-House Energy Arbitrage: Store energy during off-peak hours to avoid high utility costs during peak periods.

  • Essential UPS Backup: Rapid switching ensures computers and home medical devices stay powered during outages.
