بيت منتج الطاقة المتجددة بطارية إل إف بي ES25.6V-7.1KWH/8KWH Wall-Mounted LiFePO4 280/314Ah Battery
ES25.6V-5.12KWH Wall-Mounted LiFePO4 200Ah Battery
ES25.6V-5.12KWH Wall-Mounted LiFePO4 200Ah Battery
Back to products
ES-5.12KWH / ES-10.24KWH (51.2V) Standard Wall-Mounted LiFePO4 Battery
ES-5.12KWH / ES-10.24KWH (51.2V) Standard Wall-Mounted LiFePO4 Battery
Click to enlarge

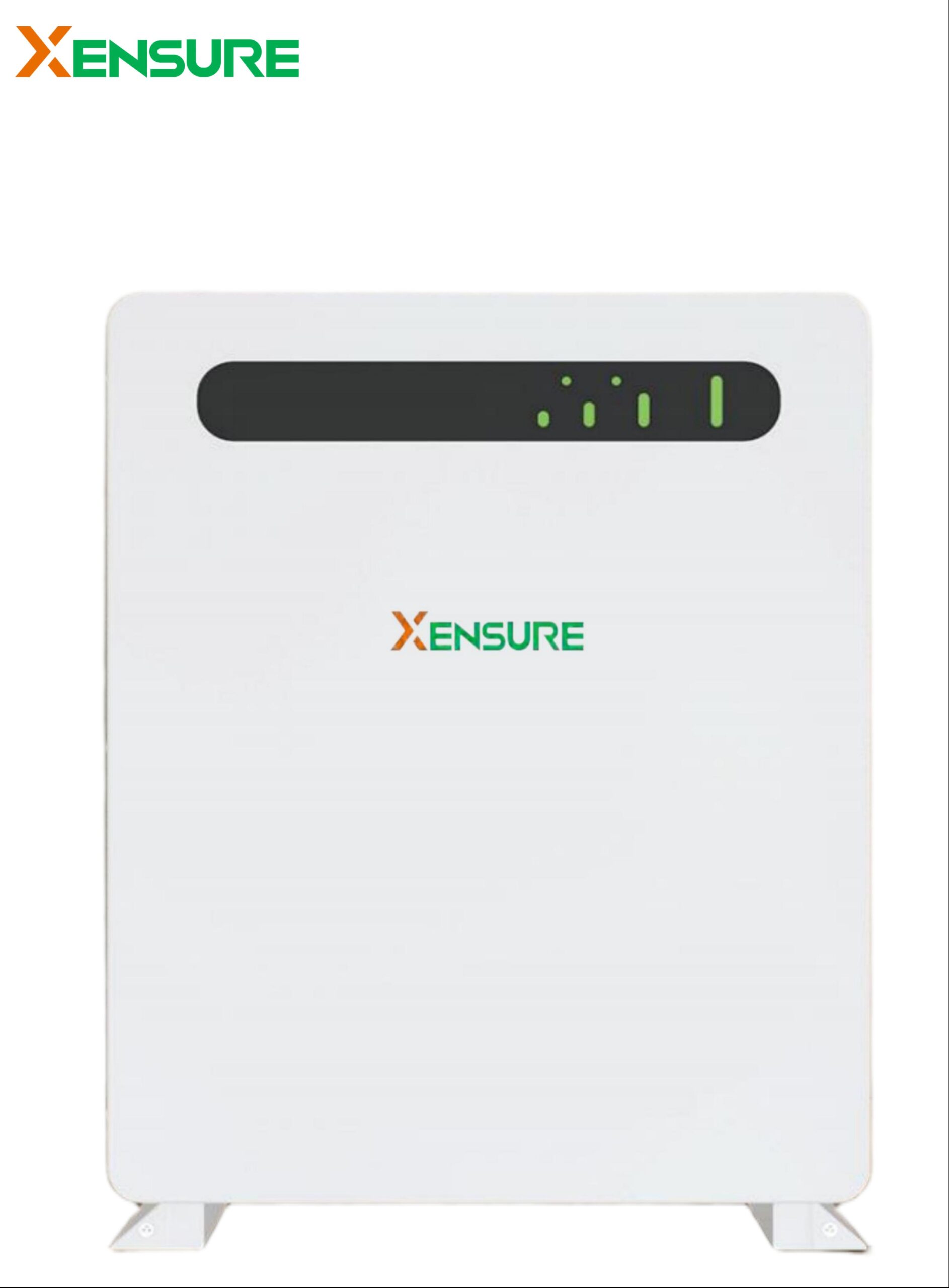

ES25.6V-7.1KWH/8KWH Wall-Mounted LiFePO4 280/314Ah Battery

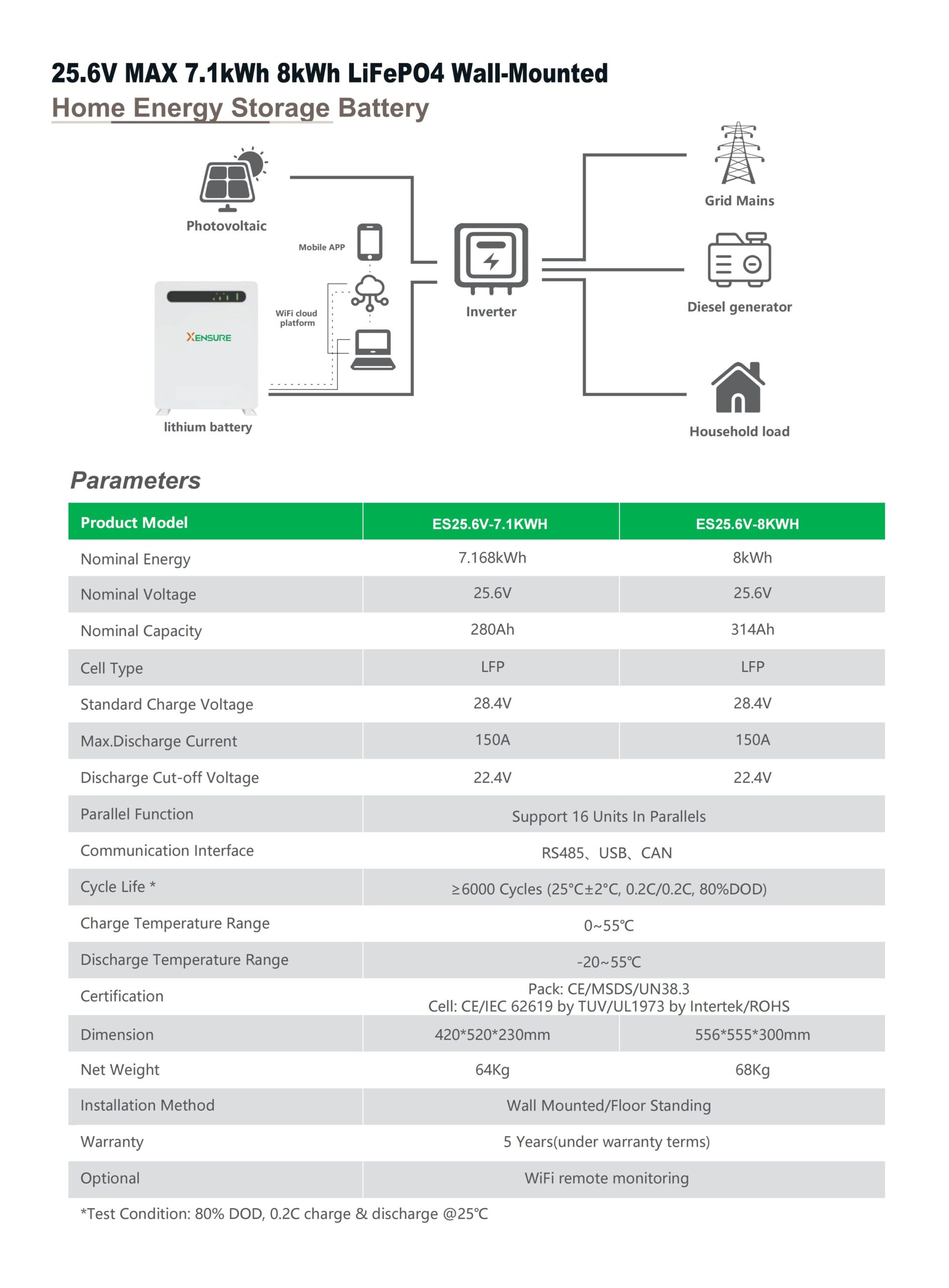

  • High-Density Energy Storage: Offers large 7.1kWh (280Ah) or 8kWh (314Ah) energy options in a compact 25.6V wall-mount format.

  • Extended Service Life: Delivers over 6,000 deep cycles (80% DOD) to support consistent daily energy cycling.

  • Rapid Power Delivery: Supports high discharge currents up to 150A for demanding household appliance loads.

  • Integrated Smart Oversight: Features built-in WiFi for real-time cloud monitoring and remote OTA system optimization.

  • Robust Safety Profile: Grade A LFP chemistry provides superior thermal stability and low-voltage safety.

  • Massive Expansion Support: Capable of parallel operation with up to 16 units for large-scale residential power.

ENQUIRY!
Categories: بطارية إل إف بي, الطاقة المتجددة
Share:
  • Description
  • Reviews (0)
Description

The High Capacity ES25.6V Series (7.1kWh and 8kWh) represents the pinnacle of 24V residential battery technology. Utilizing industry-leading 280Ah or 314Ah cells, these units deliver massive energy reserves in a stylish wall-mounted enclosure. They are engineered to bridge the gap between simple backup and complete energy independence, providing enough power to handle heavy residential loads. With universal inverter compatibility and advanced cloud-based monitoring, this series is the ultimate upgrade for high-demand modern households.

Key Features:

  • Superior Power Output: Capable of sustained 150A discharge, allowing it to easily start and run air conditioners and high-power kitchen appliances.

  • Precision Cloud Management: Stay connected to your energy asset via WiFi, enabling instant health checks and remote firmware enhancements anywhere in the world.

  • Elegant Functional Aesthetics: Designed to save space with a minimalist profile that supports both floor stand and wall mount options.

  • Certified Reliability: Built to exceed global standards with comprehensive certifications for cells and packs, including IEC 62619 and UL 1973.

Application Scenarios:

  • Large Household Energy Storage: Perfectly suited for villas and large homes with significant energy demands.

  • High-Load Power Backup: Provides the robust throughput needed to maintain comfort during grid outages.

  • Solar Self-Consumption: Maximizes the utilization of solar energy by storing excess power for use during peak tariff hours.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ES25.6V-7.1KWH/8KWH Wall-Mounted LiFePO4 280/314Ah Battery” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

430kWh+150kW 10 Feet Commercial&Industrial BESS

الطاقة المتجددة, بطارية إل إف بي
  • Compact Mega-Storage: Delivers 430kWh of energy storage and 150kW of output power within a standard 10-foot container.

  • High Operational Efficiency: Features a system conversion efficiency of 96% with advanced air-cooling to ensure peak performance.

  • Integrated Plug-and-Play: Fully pre-assembled system including battery clusters, PCS, and fire-fighting system for easy transportation and O&M.

  • Smart Grid Interconnection: Supports versatile applications such as peak-shift, peak-cut, and frequency regulation for modern grids.

  • Industrial Safety Standards: Multi-level battery protection layers and an Aerosol fire-fighting system ensure impeccable safety.

  • Rugged Outdoor Durability: IP55 rated enclosure designed for reliable operation in extreme temperatures (Charge: 0-55°C / Discharge: -10-60°C).

ENQUIRY!

XST-BOX, Stackable LiFePO4 Battery, 204V-512V, 50Ah

الطاقة المتجددة, بطارية إل إف بي
  • Modular Stacking Design: Supports series connection of 4 to 10 battery modules, offering flexible capacity extension without complex wiring.

  • Easy Installation: Features 28kg lightweight modules that allow for efficient one-person installation and setup.

  • Smart Monitoring & OTA: Connects seamlessly to Wi-Fi for remote monitoring via APP; supports OTA remote upgrades for simple maintenance.

  • Intelligent Identification: Automatically identifies master-slave batteries with auto-DIP address assignment, simplifying system commissioning.

  • High Protection Grade: Rated IP65, ensuring safe and reliable operation in diverse indoor and semi-outdoor environments.

  • High Efficiency Parallel: Supports up to 10 clusters in parallel without the need for an additional combiner box.

ENQUIRY!

ES-5.12KWH / ES-10.24KWH (51.2V) Standard Wall-Mounted LiFePO4 Battery

الطاقة المتجددة, بطارية إل إف بي
  • Mainstream 48V/51.2V Design: The industry-standard voltage platform for seamless integration with high-performance 48V hybrid inverters.

  • Massive Energy Resilience: Available in 5.12kWh (100Ah) and 10.24kWh (200Ah) options to fit any home backup strategy.

  • Extreme Longevity: Rated for ≥6,000 cycles at 80% DOD, providing over 10 years of maintenance-free service.

  • Rapid Energy Transfer: Supports high-speed 1C charging and discharging for fast system response.

  • Intelligent BMS Coordination: Simultaneous communication with major inverter brands including Deye, Growatt, and Solis.

  • Space-Saving Wall Mount: Minimalist profile designed to optimize installation space in garages or utility rooms.

ENQUIRY!

ES-10kWh/16kWh Wall-Mounted LiFePO4 Battery

الطاقة المتجددة, بطارية إل إف بي
  • Extreme Capacity Single Module: Delivers a massive 16kWh (314Ah) of energy storage in a single high-efficiency wall-mounted unit.

  • Massive Current Capability: Supports an ultra-high continuous discharge current of 200A for heavy industrial and domestic loads.

  • Elite Longevity: Guaranteed for ≥6,000 deep cycles (80% DOD), ensuring a service life exceeding 15 years in typical applications.

  • Auto-Dialing Parallel Support: Advanced BMS features auto-dialing CAN communication for simplified parallel expansion.

  • Comprehensive Global Certification: Fully certified with IEC 62619, CE, and UN38.3 for unrestricted international deployment.

  • Slim-Profile Mega-Power: Offers industrial-scale energy density while maintaining a wall-mounted footprint of only 238mm depth.

ENQUIRY!

ES25.6V-5.12KWH Wall-Mounted LiFePO4 200Ah Battery

الطاقة المتجددة, بطارية إل إف بي
  • Optimized 24V System: Specifically designed for 25.6V platforms, delivering a high capacity of 200Ah and 5.12kWh of energy.

  • Superior Cycle Life: Guaranteed for over 6,000 cycles at 80% DOD, ensuring long-term reliability for over a decade.

  • 1C Performance: Supports 1C/1C continual charge and discharge rates for high-power energy transfer.

  • Flexible Dual Mounting: Supports both wall-mounted and floor-standing installation with a removable stand.

  • Smart Cloud Connectivity: Integrated WiFi for real-time monitoring and cloud-based management with remote OTA updates.

  • Universal Inverter Support: Fully compatible with major inverter brands like Victron, SMA, Growatt, and Deye.

ENQUIRY!

860kWh+500kW/1.075mWh+500kW 20 Feet Commercial&Industrial BESS

الطاقة المتجددة, بطارية إل إف بي
  • Massive Energy Density: Offers either 860kWh or 1.075MWh of high-density storage within a standard 20-foot container.

  • High Output Performance: Provides a powerful 500kW rated output, ideal for large industrial peak-shaving and energy arbitrage.

  • Superior Efficiency: Achieves a 98% conversion efficiency with advanced cooling to ensure long-term battery health.

  • Ultra-Fast Stabilization: Features a 20ms response time for instant grid support and uninterrupted operation during outages.

  • Comprehensive Safety Suite: Includes Perfluorohexanone fire suppression and IP55 protection for reliable outdoor use.

  • Pre-Assembled Design: Integrated design supports easy transportation and rapid O&M without complex on-site assembly.

ENQUIRY!

BG Series LFP Battery Module (3kWh – 15kWh)

بطارية إل إف بي
  • Premium LiFePO4 Cells: Utilizes high-quality lithium iron phosphate power cells for superior reliability and performance.

  • Independent BMS: Each module is equipped with an independent high-performance BMS for scientific cell management.

  • Ultra-Long Cycle Life: Offers an exceptional service life of up to 8,000 to 10,000 cycles at 80% DOD.

  • Massive Scalability: Supports multiple battery packs in parallel to meet diverse energy storage requirements.

  • High Efficiency: Achieves charging efficiency of ≥97% and discharging efficiency of ≥98%.

  • Rugged Protection: Features a durable metal shell with an IP30 protection rating for safe indoor use.

  • Broad Adaptability: Operates reliably in a wide temperature range from -20°C to 60°C.

ENQUIRY!

Tower-XST-768V280Ah Energy Storage System

الطاقة المتجددة, بطارية إل إف بي
  • High-Capacity Storage: Delivers a rated energy of 215kWh to 235kWh per rack, ideal for large-scale energy demands.

  • Superior Cycle Performance: Guaranteed 8,000+ cycles at 80% DOD, ensuring a long operational life of 10+ years.

  • Space-Saving Design: Features a freely stackable, high-density vertical design that saves significant floor space and bracket costs.

  • Integrated Safety & Cooling: Equipped with a built-in fan for accelerated heat dissipation and an Aerosol fire-fighting system for maximum security.

  • Advanced Monitoring: Built-in smart BMS manages high-power loads and supports Wi-Fi for 24/7 remote monitoring and OTA upgrades.

  • Industrial Compliance: Fully certified to international standards including UL 1973, IEC 62619, TUV, and CE.

ENQUIRY!
