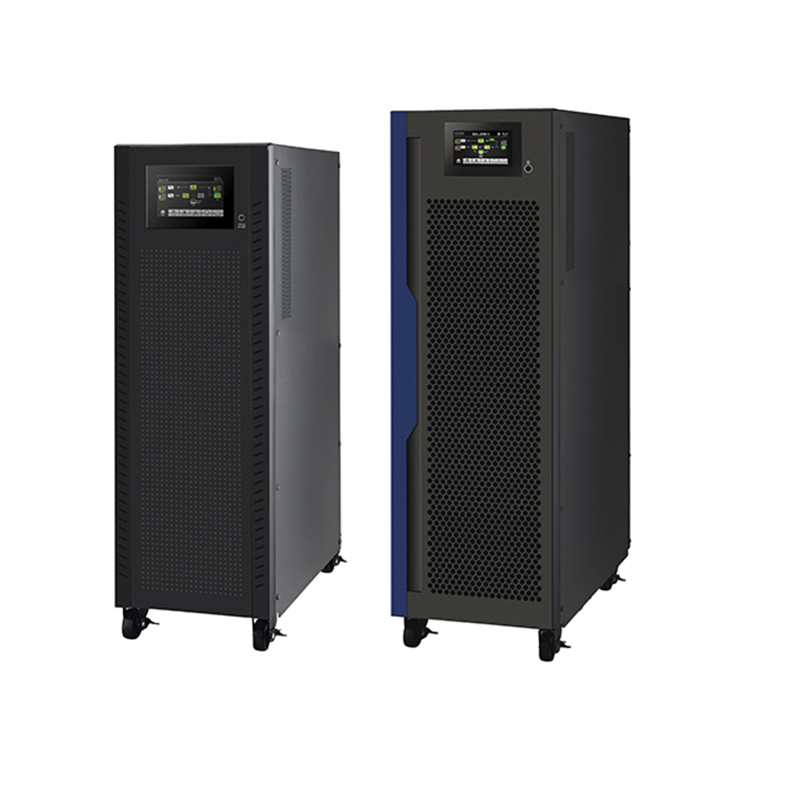

PF 1.0 High Frequency UPS

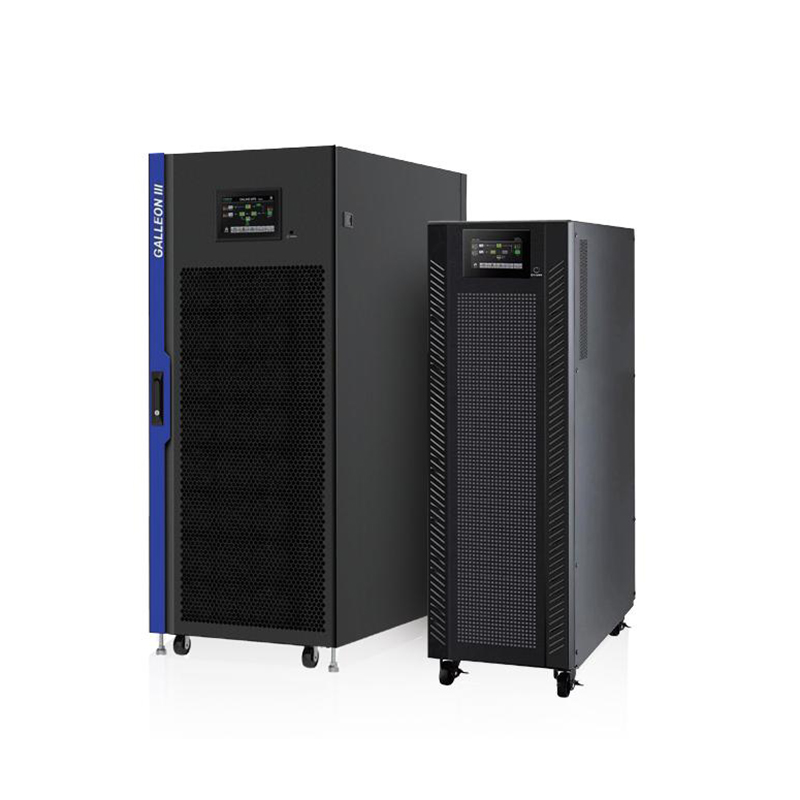

The Galleon III 3P/3P, 3P/1P & 1P/1P Tower (10K-20K) is a true double-conversion UPS engineered to deliver exceptional performance and reliability for critical power applications.
With advanced DSP technology and a unity output power factor (1.0), it ensures superior efficiency and system stability.
The UPS offers flexible configuration options—3-in/3-out, 3-in/1-out, or 1-in/1-out—to meet diverse installation needs.
Designed for energy efficiency and operational flexibility, the Galleon III features active power factor correction, dual AC inputs, and ECO mode operation. It also supports frequency converter mode (50Hz/60Hz), generator compatibility, and adjustable battery configurations for long-run models.
For scalability and redundancy, up to four units can operate in parallel with a common battery bank, making it a reliable choice for mission-critical environments.
True double-conversion
Flexible system configuration as 3-in/3-out, 3-in/1-out or 1-in/1-out
DSP technology guarantees high performance
Output power factor 1.0
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving (ECO)
Dual AC inputs
Emergency power off function (EPO)
Generator compatible
Adjustable battery numbers for long-run model
Parallel operation up to 4 units with common battery
Advanced Three-Level Inverter: Achieves high operational efficiency of >93% in line mode while significantly reducing harmonic distortion.
High Output Power Factor (0.9): Delivers robust power capacity (5.4kW for 6kVA and 9kW for 10kVA) to support modern high-density IT loads.
Precision DSP Control: Utilizes advanced Digital Signal Processors to ensure superior reliability and precise performance in critical applications.
Wide Voltage & Frequency Adaptability: Operates stably across a broad input range (90V–300V and 40Hz–70Hz), making it perfect for unstable grids.
Active Input Power Factor Correction: Features APFC with a power factor of >0.99 to minimize grid interference and maximize energy efficiency.
Intelligent Monitoring Interface: Large LCD screen displays real-time input voltage, frequency, load levels, and system health status.
Versatile Load Compatibility: Specifically engineered to handle sensitive loads like ultrasound systems and professional laser printers through deep customization.
Rugged Reliability Design: Built with high-strength FR4 double-sided PCBs and conformal coating for enhanced durability in various environments.
High-Frequency Online Double Conversion: Delivers continuous, pure sine wave power by isolating connected equipment from all grid disturbances.
Advanced DSP Control: Utilizes Digital Signal Processors to ensure high reliability, precise control, and superior system performance.
Wide Input Adaptability: Features an ultra-wide input voltage range of 90V–300V and frequency range of 40Hz–70Hz to handle unstable grid environments.
High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) for modern high-density IT loads.
Space-Saving 2U Design: Compact 2U rack-mount form factor optimizes valuable space in standard server cabinets.
Generator Compatible: Active power factor correction (>0.99) and frequency auto-sensing ensure seamless integration with generator sets.
Accepts Specialized Loads: Specifically designed to accommodate laser printers and ultrasound system loads (customization available).
Smart Monitoring: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote management and automated server/NAS shutdown.
Galleon Pro is the high density version of the Galleon series of double-conversion online UPS with aoutput power factor 0.9.
Ranging from 10KVA to 30KVA,it's designed in small footprints with DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times.
Its dual mains inputs will secure thepower reliability in power fluctuation area.
High-Frequency Online Double Conversion: Provides absolute power protection by isolating equipment from all grid disturbances.
Advanced DSP Control: Utilizes Digital Signal Processors to ensure high reliability and precise output performance.
High Output Power Factor (0.9): Delivers more real power (up to 2.7kW for 3kVA) to support modern, high-density IT loads.
Wide Input Adaptability: Operates stably across an ultra-wide voltage range of 90V–300V and frequency range of 40Hz–70Hz.
Active Power Factor Correction: Features an input power factor of >0.99 to maximize energy efficiency and minimize grid pollution.
Intelligent LCD Interface: Real-time monitoring of input voltage, frequency, load level, operation mode, and system health status.
Generator Compatible: Engineered to handle power fluctuations and ensure seamless integration with various generator sets.
Comprehensive Protection: Safeguards against overloads and grid surges with an internal input circuit breaker and reliable FR4 PCB design.
Cost-Effective 3-Phase Standalone Online UPS with Easy-Replaceable & Load-Sharing Module Design.
Fortress is equipped with pluggable power modules with front access terminal wiring (for 100K/120K models), making maintenance and replacement quick and easy, and decreasing MTTR.
Fortress also comes with a built-in 4-switch including mains input, bypass input, output, and maintenance bypass switch.
Cost-Effective 3-Phase Standalone Online UPS with Easy-Replaceable & Load-Sharing Module Design.
Fortress is equipped with pluggable power modules with front access terminal wiring (for 100K/120K models), making maintenance and replacement quick and easy, and decreasing MTTR.
Fortress also comes with a built-in 4-switch including mains input, bypass input, output, and maintenance bypass switch.
