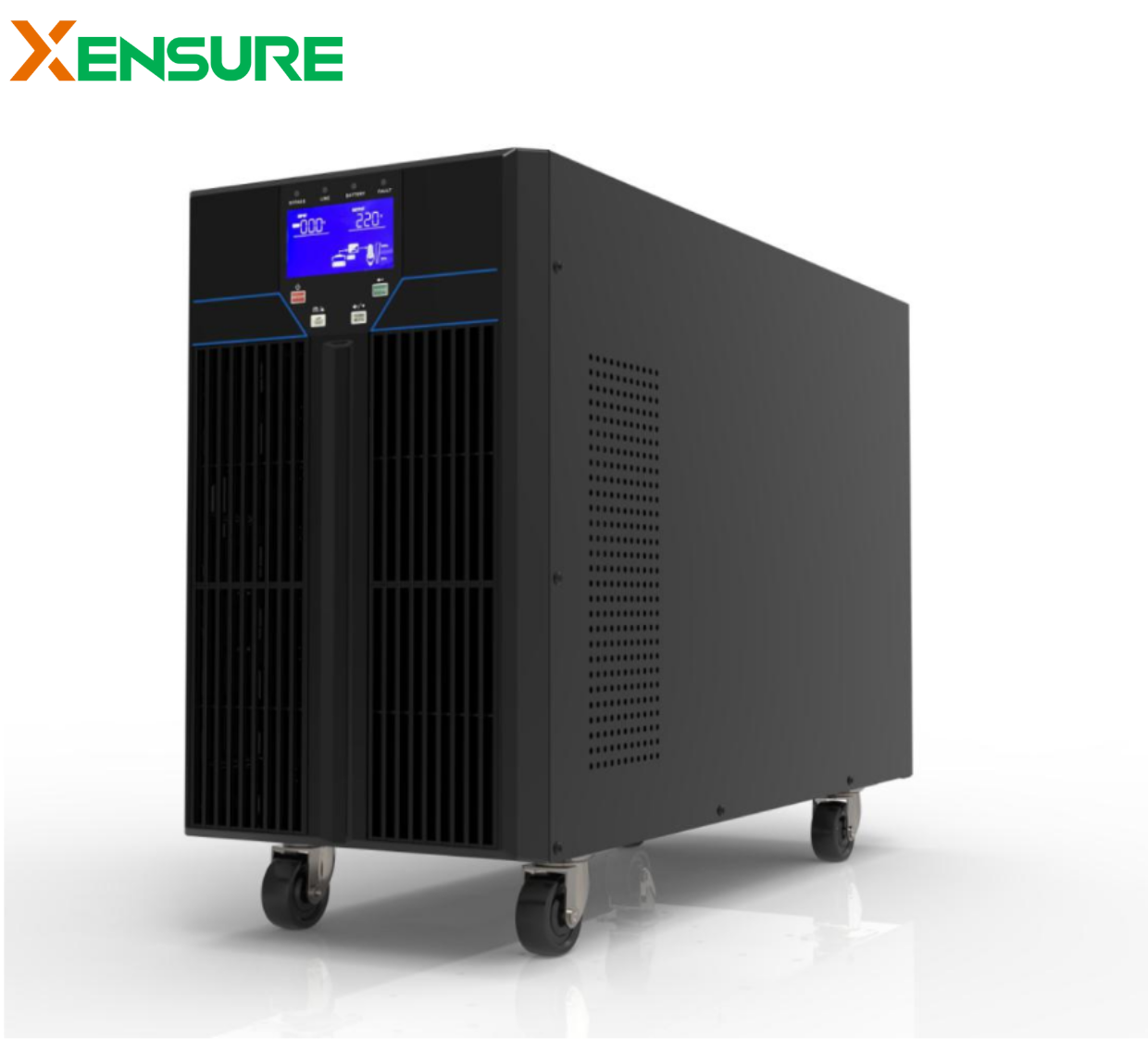

HVC Series Online Tower UPS, 220V, 6~10KVA, 1:1phase, PF: 0.9

Advanced Three-Level Inverter: Achieves high operational efficiency of >93% in line mode while significantly reducing harmonic distortion.
High Output Power Factor (0.9): Delivers robust power capacity (5.4kW for 6kVA and 9kW for 10kVA) to support modern high-density IT loads.
Precision DSP Control: Utilizes advanced Digital Signal Processors to ensure superior reliability and precise performance in critical applications.
Wide Voltage & Frequency Adaptability: Operates stably across a broad input range (90V–300V and 40Hz–70Hz), making it perfect for unstable grids.
Active Input Power Factor Correction: Features APFC with a power factor of >0.99 to minimize grid interference and maximize energy efficiency.
Intelligent Monitoring Interface: Large LCD screen displays real-time input voltage, frequency, load levels, and system health status.
Versatile Load Compatibility: Specifically engineered to handle sensitive loads like ultrasound systems and professional laser printers through deep customization.
Rugged Reliability Design: Built with high-strength FR4 double-sided PCBs and conformal coating for enhanced durability in various environments.

The HVC Series Online Tower UPS (6kVA~10kVA) is a high-capacity 220V power protection flagship designed for enterprise-level critical infrastructure. By integrating cutting-edge three-level inverter topology with advanced DSP digital control, it delivers a pure sine wave output with 1% voltage regulation accuracy and peak efficiency exceeding 93%. As an OEM-ready solution, the HVC Series offers a powerful 0.9 power factor and flexible battery configurations (internal or external), providing the ultimate power backbone for high-demand digital environments.

Key Features:

Economic Operation Mode (ECO): Includes an energy-saving ECO mode to further reduce energy consumption and operational costs when utility power is stable.
Intelligent Battery Management: Supports flexible battery configurations with a standard 1A charging current or a powerful 4A charger for long-backup models.
Generator & Grid Compatible: Features frequency auto-sensing and smooth synchronization tracking, ensuring seamless operation with various generator sets.
Entretien & Security: Equipped with a built-in maintenance bypass switch and battery switch for safe servicing without interrupting power to the load.

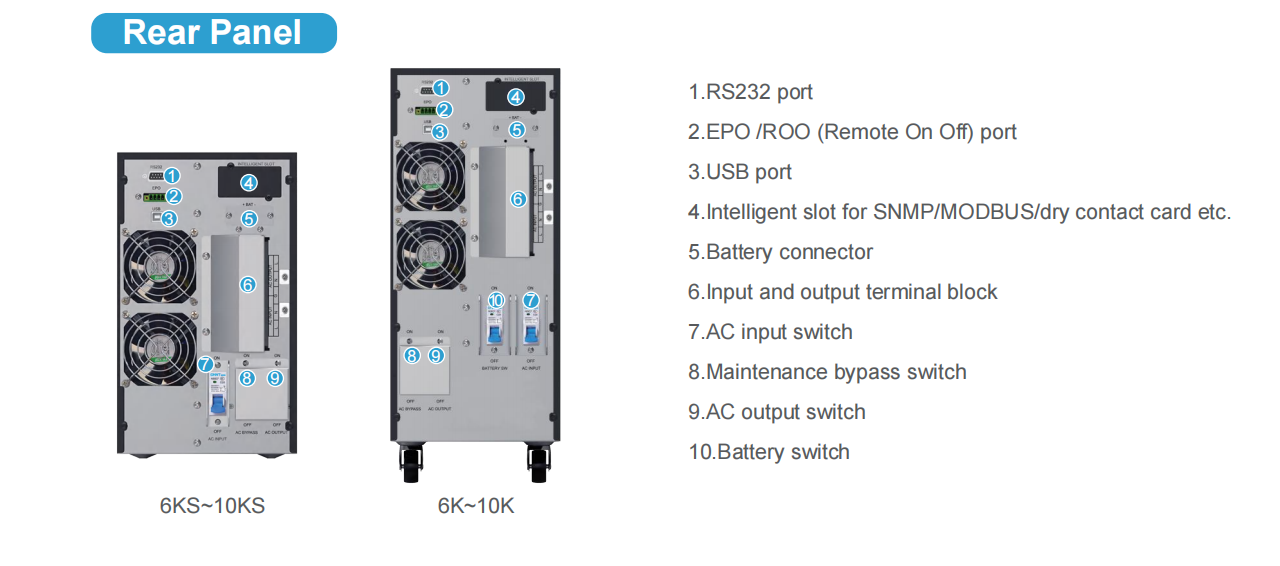

Advanced Communication: Standard RS232 port with optional expansion slots for SNMP, MODBUS, USB, and dry contact cards for remote web/APP management .
Reliable Startup: Features a cold start function for emergency activation without mains power and auto-restart when AC power is restored.

Application Scenarios:

Micro Data Centers: Ideal for protecting centralized server rooms, high-end enterprise switches, and critical NAS storage arrays.
Healthcare Systems: Provides clean, isolated power for sensitive medical diagnostic equipment such as ultrasound systems.
Industrial Control Hubs: Reliable power protection for 220V industrial PCs, PLCs, and manufacturing automation systems in commercial environments.
Professional Printing: Robust enough to handle the unique high inrush current requirements of industrial laser printers.
Financial & Commercial: Ensures zero downtime for large-scale POS systems, security surveillance centers, and communication networks.
