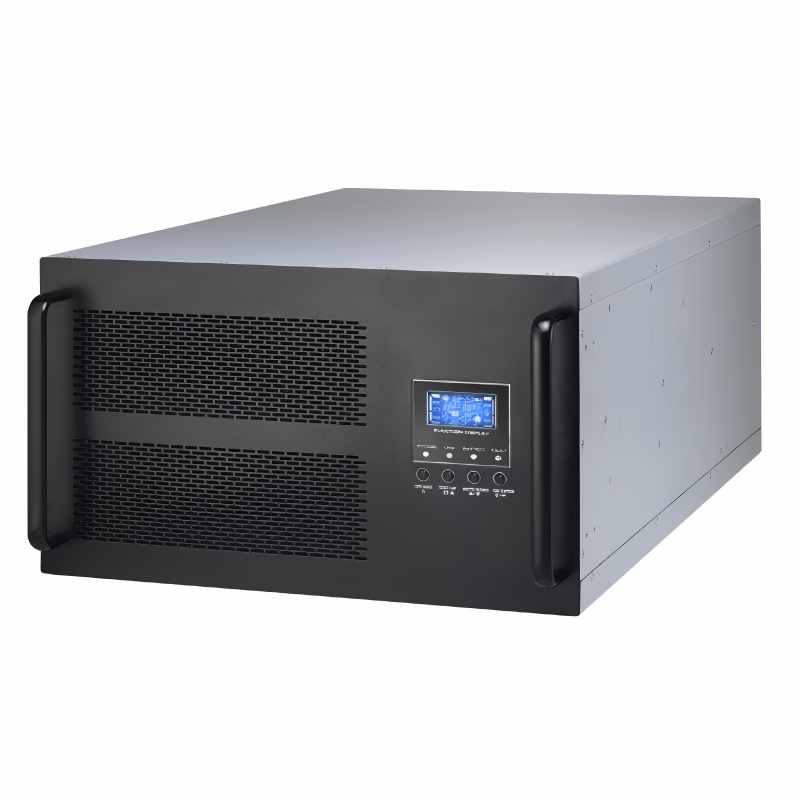

Galleon Pro 3P/3P Rackmount PF 0.9 10kVA 15kVA 20kVA

Galleon Pro is the high density version of the Galleon series of double-conversion online UPS with aoutput power factor 0.9.

Ranging from 10KVA to 30KVA,it’s designed in small footprints with DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times.

Its dual mains inputs will secure thepower reliability in power fluctuation area.

ENQUIRY!
Category:
Description

Main Features

True double-conversion
DSP technology guarantees high performance
Output power factor 0.9
Wide input voltage range (110-300 VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving
Accepts dual power inputs
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy
Optional isolation transformer offers full isolation and complete common mode noise


Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Galleon Pro 3P/3P Rackmount PF 0.9 10kVA 15kVA 20kVA”

Your email address will not be published. Required fields are marked *

Related products

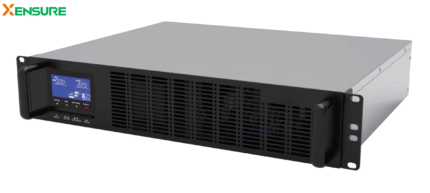

HV Series Online Rack Mount UPS, 220V, 1~3KVA, 1:1phase, PF: 0.9

  • High-Frequency Online Double Conversion: Delivers continuous, pure sine wave power by isolating connected equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to ensure high reliability, precise control, and superior system performance.

  • Wide Input Adaptability: Features an ultra-wide input voltage range of 90V–300V and frequency range of 40Hz–70Hz to handle unstable grid environments.

  • High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) for modern high-density IT loads.

  • Space-Saving 2U Design: Compact 2U rack-mount form factor optimizes valuable space in standard server cabinets.

  • Generator Compatible: Active power factor correction (>0.99) and frequency auto-sensing ensure seamless integration with generator sets.

  • Accepts Specialized Loads: Specifically designed to accommodate laser printers and ultrasound system loads (customization available).

  • Smart Monitoring: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote management and automated server/NAS shutdown.

ENQUIRY!

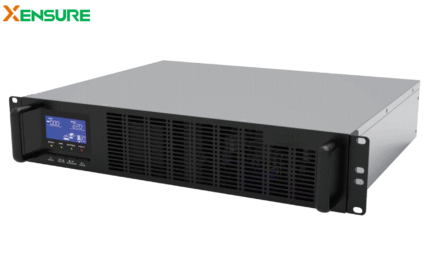

LV Series Online Rack Mount UPS, 1~3KVA, 1:1phase, PF: 0.9, 110V In/ 110V Out

  • High-Frequency Online Double Conversion: Ensures continuous, clean power by converting AC to DC and back to AC, isolating equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to provide precise control, high reliability, and superior performance.

  • Wide Input Adaptability: Features a broad input voltage range of 60-145V and frequency range of 40-70Hz, ideal for unstable grid conditions.

  • High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) to support modern, high-density IT loads.

  • Active Power Factor Correction: Input power factor is greater than 0.99, minimizing electrical interference and improving energy efficiency.

  • Generator Compatible: Stable performance and frequency auto-sensing allow for seamless integration with various generator sets.

  • Space-Saving 2U Rack Design: Compact 2U form factor fits easily into standard server racks, optimizing space in data centers and server rooms.

  • Smart Management & Communication: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote monitoring and automated server/NAS shutdown.

ENQUIRY!

Galleon Ill 3P/3P & 3P/IP & 1P/IP Tower 10kVA 20kVA

PF 1.0 High Frequency UPS The Galleon III 3P/3P, 3P/1P & 1P/1P Tower (10K-20K) is a true double-conversion UPS engineered to deliver exceptional performance and reliability for critical power applications. With advanced DSP technology and a unity output power factor (1.0), it ensures superior efficiency and system stability. The UPS offers flexible configuration options—3-in/3-out, 3-in/1-out, or 1-in/1-out—to meet diverse installation needs. Designed for energy efficiency and operational flexibility, the Galleon III features active power factor correction, dual AC inputs, and ECO mode operation. It also supports frequency converter mode (50Hz/60Hz), generator compatibility, and adjustable battery configurations for long-run models. For scalability and redundancy, up to four units can operate in parallel with a common battery bank, making it a reliable choice for mission-critical environments.
ENQUIRY!

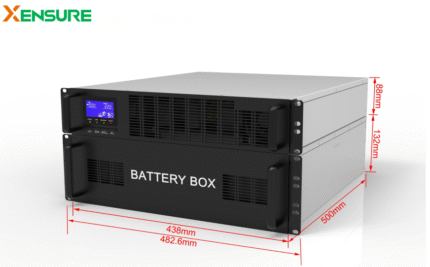

HV Series Online Rack Mount UPS, 220V, 6~10KVA, 1:1phase, PF: 0.9, with External Battery

  • High-frequency on-line double conversion: Ensures a pure sine wave output by isolating equipment from all grid disturbances.

  • DSP (Digital signal processors) control: Advanced digital control provides higher reliability and precise system performance.

  • Active input power factor correction: Features an input power factor of >0.99 to maximize energy utilization and minimize grid pollution.

  • Three-level inverter technology: Achieves higher operational efficiency and lower harmonic distortion for superior power quality.

  • Ultra-wide input range: Operates stably within a voltage range of 90V–300V and a frequency range of 40Hz–70Hz.

  • High output power factor: A 0.9 PF delivers more real power (up to 9kW for the 10kVA model) to support high-density IT loads.

  • Space-saving 2U rack design: Standard 2U height optimizes space within server cabinets and data centers.

  • External battery support: Designed for long backup requirements, supporting 192/240VDC external battery configurations with a 4A charger.

ENQUIRY!

Galleon Pro Value 3P/3P 10kVA 15kVA 20kVA from Shenzhen Factory

Customized dual-mains inputs Galleon Pro Value is the high-density version of the Galleon series of double-conversion online UPS with an output power factor 0.9. Ranging from 10KVA to20KVA, it’s designed in a small footprintswith DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times. Its dual mains inputs willsecure the power reliability in a power fluctuation area.
ENQUIRY!

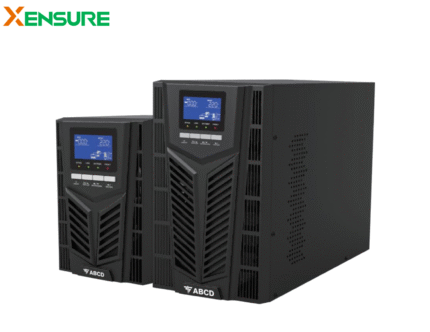

HVC Series Online Tower UPS, 220V, 1~3KVA, 1:1phase, PF: 0.9

  • High-Frequency Online Double Conversion: Provides absolute power protection by isolating equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to ensure high reliability and precise output performance.

  • High Output Power Factor (0.9): Delivers more real power (up to 2.7kW for 3kVA) to support modern, high-density IT loads.

  • Wide Input Adaptability: Operates stably across an ultra-wide voltage range of 90V–300V and frequency range of 40Hz–70Hz.

  • Active Power Factor Correction: Features an input power factor of >0.99 to maximize energy efficiency and minimize grid pollution.

  • Intelligent LCD Interface: Real-time monitoring of input voltage, frequency, load level, operation mode, and system health status.

  • Generator Compatible: Engineered to handle power fluctuations and ensure seamless integration with various generator sets.

  • Comprehensive Protection: Safeguards against overloads and grid surges with an internal input circuit breaker and reliable FR4 PCB design.

ENQUIRY!

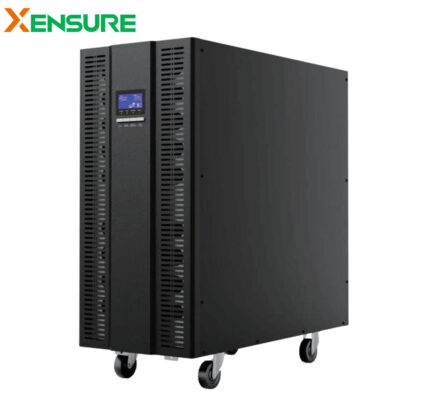

HV31 Series Online Tower UPS, 220v, 10-20KVA, 3:1phase, PF: 0.9

  • Advanced DSP Control: Equipped with dual Digital Signal Processors to ensure high reliability and precise performance for critical loads.
  • Versatile Phase Configuration: Supports both single-phase and three-phase mains input without complex settings or power derating.
  • Superior Efficiency: Utilizes three-level inverter technology to achieve higher efficiency (>94%) and lower harmonic distortion.
  • Wide Input Adaptability: Broad input voltage range (90V–300V) and frequency range (40Hz–70Hz) for stable operation in unstable power environments.
  • Excellent Power Quality: Delivers a pure sine wave output with a 0.9 output power factor, providing high-density power for modern professional equipment.
  • Flexible OEM/ODM Customization: Specifically designed to accept deep customization to meet diverse industrial and commercial requirements.
ENQUIRY!

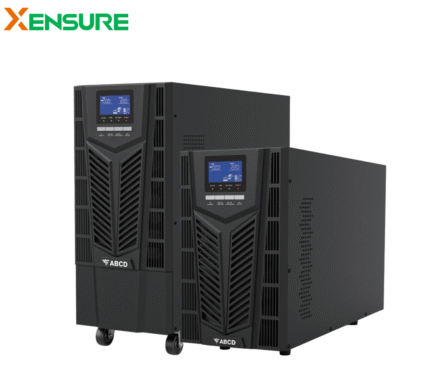

HVC Series Online Tower UPS, 220V, 6~10KVA, 1:1phase, PF: 0.9
