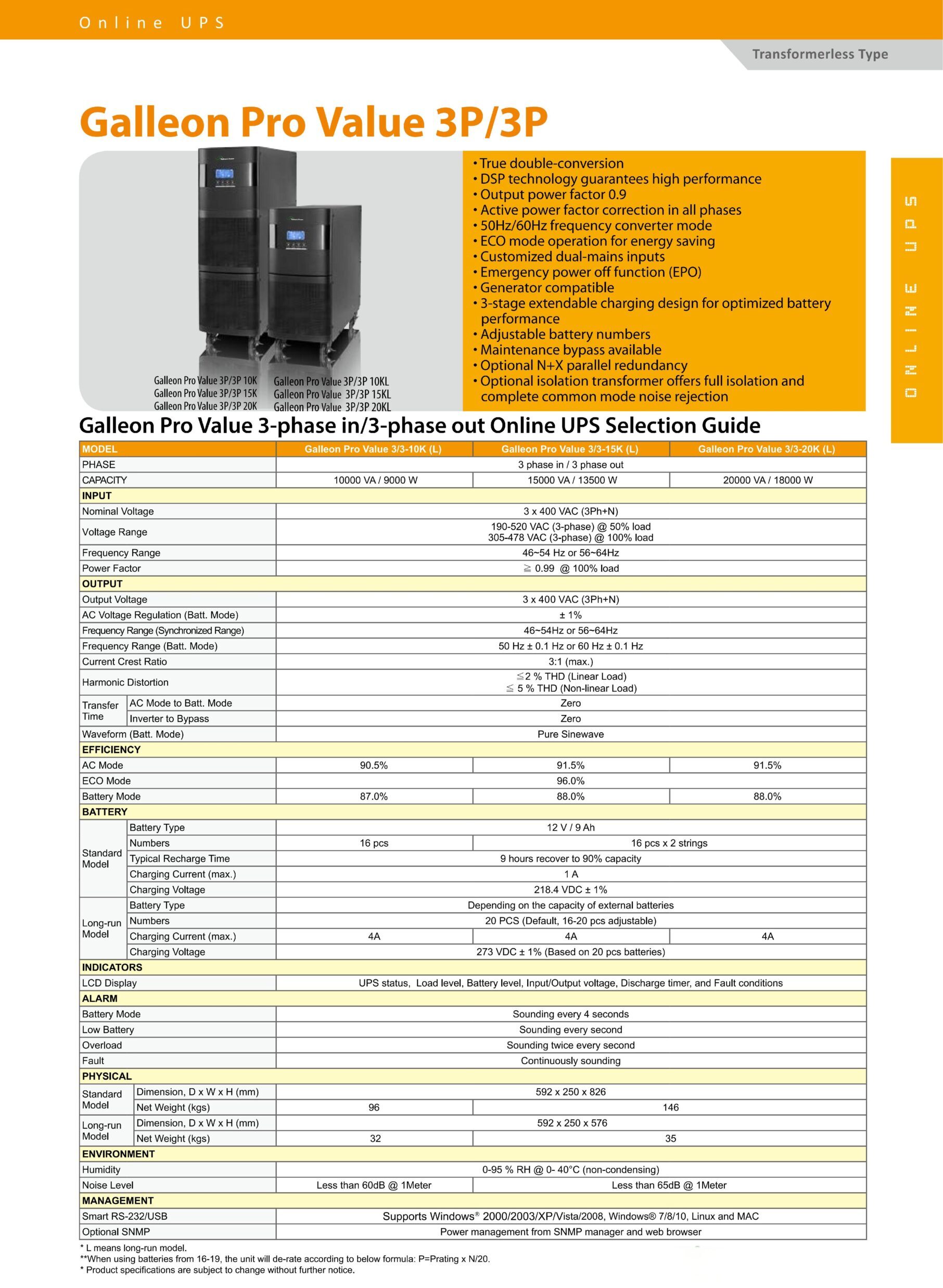

Galleon Pro Value 3P/3P PF 0.9 10kVA 15kVA 20kVA from Shenzhen Factory

Customized dual-mains inputs
Galleon Pro Value is the high-density version of the Galleon series of double-conversion online UPS with an output power factor 0.9. Ranging from 10KVA to20KVA, it’s designed in a small footprintswith DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times. Its dual mains inputs willsecure the power reliability in a power fluctuation area.

ENQUIRY!
Category:
Description

Main Features

True double-conversion
DSP Technology guarantees high performance
Output power factor 0.9
Active Power factor correction in all phases
50 Hz/60 Hz frequency converter mode
ECO mode operation for energy saving
Customized dual-mains inputs
Emergency power off function (EPO)
Generator compatible
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy
The optional isolation transformer offers full isolation and complete common-mode noise rejection
