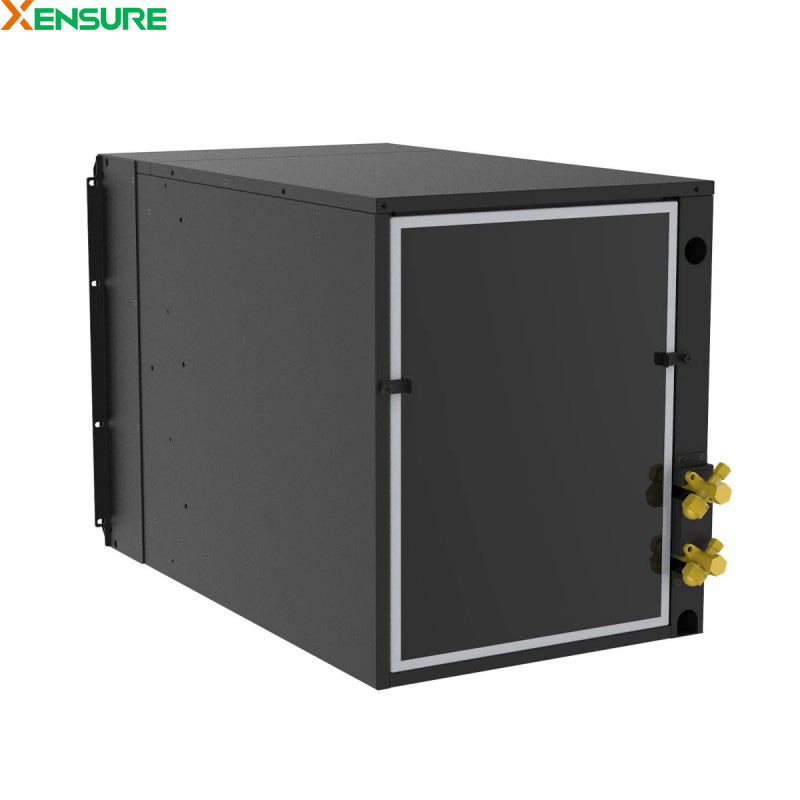

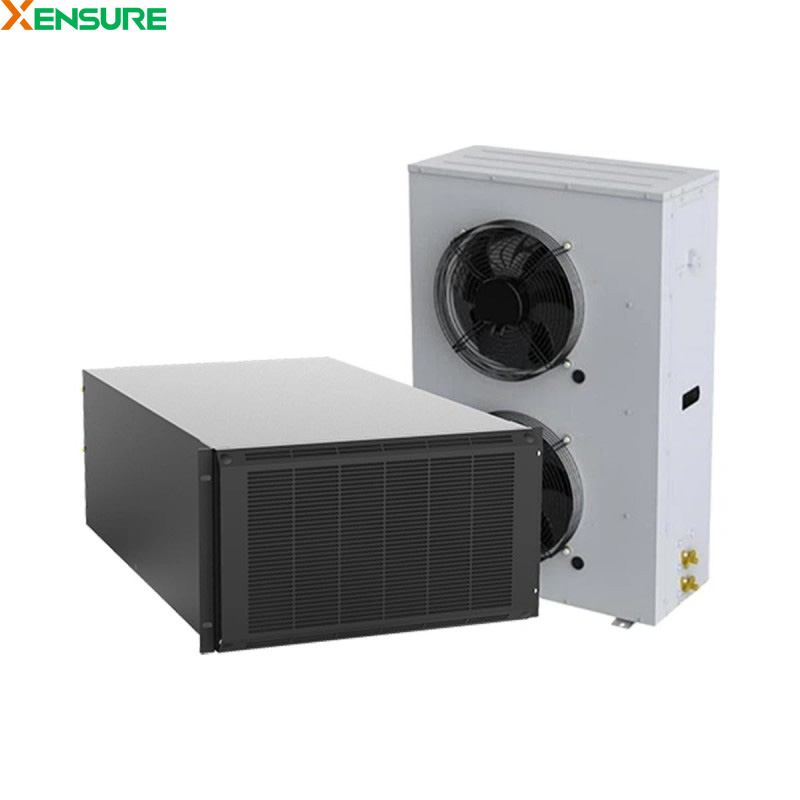

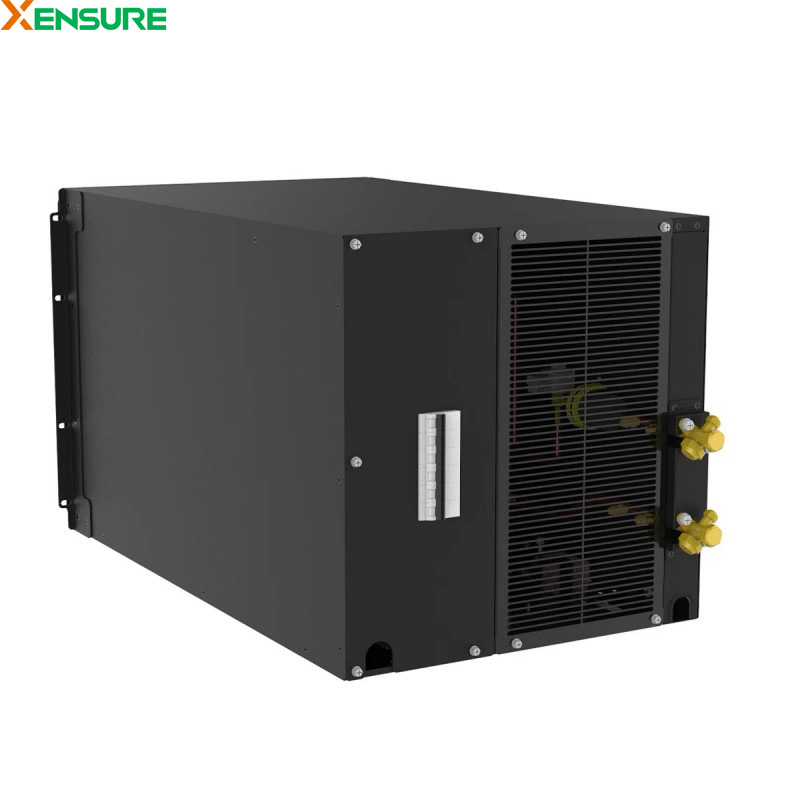

SY-JAF Series, Rack-mounted Precision Air Conditioner, 3.5-12.5kW

  1. Rack-compatible & Easy Deployment: Fits standard server racks (6U-12U) with bottom/rack mounting options; packaged/split design enables tool-free installation, convenient shipping, and slide-drawer electric box for hassle-free maintenance.
  2. Precision Cooling for High Sensible Heat Loads: 100% sensible heat ratio (SHR) perfectly matches data center requirements; inverter compressor (split type) and load-modulating fans maintain stable temperatures, avoiding compressor cycling under low heat loads.
  3. Energy-efficient & Eco-friendly: Adopts industry-top brand/inverter compressors and high-efficiency components; uses R410A refrigerant (zero ODP) to meet environmental standards, reducing energy consumption and carbon footprint.
  4. Flexible Adaptability & Reliable Operation: Operates in -15℃~45℃ (down to -35℃ with low-temperature kit); supports 220V/208-240V (1Ph-2Ph) and 380-415V (3Ph) power supplies; copper piping with quick connections allows top/bottom installation, and outdoor-mounted compressor ensures low noise and leak-free operation.
  5. Intelligent Monitoring & Scalability: Equipped with an RS485 port (optional SNMP protocol) for seamless BMS integration; the standard rack-mount structure supports future expansion, ideal for micro/modular data center scaling needs.
ENQUIRY!
Categories: ,
Description

The SY-JAF rack-mounted air conditioner is a precision air conditioning unit with a cooling capacity range of 3.5 to 12.5 kW, an airflow range of 750 to 2400 m³/h, and a sensible heat ratio of up to 100%. It uses environmentally friendly R410A refrigerant and high-efficiency compressors/EC fans, supports 208-240V (single-phase or two-phase) or 380-415V (three-phase) power supplies, is compatible with standard server racks, and can operate stably in ambient temperatures from -15℃ to 45℃ (down to -35℃ with a low-temperature kit). It is suitable for micro data centers and small modular data centers.

Key Feature

  1. Rack-compatible & Easy Installation: Fits standard server racks (6U-12U), supports bottom/rack mounting, and features packaged/split design for hassle-free setup, shipping, and maintenance.
  2. Precision Cooling & High SHR: 100% sensible heat ratio (SHR) perfectly matches data center high-sensible-heat loads, with inverter compressor and EC fans for stable temperature control.
  3. Energy-efficient & Eco-friendly: Adopts top-brand/inverter compressors, EC fans, and R410A refrigerant (zero ODP), ensuring high efficiency and environmental compliance.
  4. Flexible Adaptability: Operates in -15℃~45℃ (down to -35℃ with low-temperature kit), supports 208-240V (1Ph-2Ph) / 380-415V (3Ph) power supply, and allows flexible piping connections.
  5. Intelligent Monitoring & Reliability: Equipped with an RS485 port (optional SNMP), easy BMS integration, a slide-drawer electric box, and an outdoor-mounted compressor for low noise and leak-free operation.

Application Scenarios

  1. Micro data centers and mini modular data centers (core application scenarios, matching integrated solution requirements).
  2. Edge computing nodes and small server rooms with limited space.
  3. Network cabinet clusters and IT equipment centralized deployment areas.
  4. Precision electronic equipment rooms requiring rack-mounted local cooling.
  5. Small-scale data processing sites needing quick deployment and low noise operation.
  6. Scenarios with strict requirements for leak-proof operation and simplified maintenance.

Indoor Unit

Model

 SY-JAF-003 SY-JAF-005 SY-JAF-007 SY-JAF-012
Total Capacity-kW 3.5 6.5 8.5 12.5
Air Volume – m³/h 750 1100 1200 2400
Cooling Type Air-Cooled DX (Direct Expansion)

Available in package type and split type

 Air-Cooled DX (Direct Expansion)

Available in package type and split type

 Air-Cooled DX (Direct Expansion)

Available in package type and split type

 Air-Cooled DX (Direct Expansion)

Available in package type and split type
Operating Voltage

208-240V/50-60Hz/1Ph-2Ph

 208-240V/50-60Hz/1Ph-2Ph 208-240V/50-60Hz/1Ph-2Ph 380-415V/50-60Hz/3Ph

Outdoor Unit

Model SY-W06AC SY-W08AC SY-W12AC SY-W18AC
Operating Voltage 208-240V/50-60Hz/1Ph-2Ph 208-240V/50-60Hz/1Ph-2Ph 208-240V/50-60Hz/1Ph-2Ph 380-415V/50-60Hz/3Ph
