SYIRC Series,Chilled Water In-Row Precision Air Conditioners,19.5-107.6KW

  1. Stepless Inverter Cooling: Equipped with an EC scroll inverter compressor and DC frequency converter, supporting 20%-100% cooling capacity adjustment, with energy efficiency 33.3%-50% higher than ordinary air-cooled units.
  2. 100% SHR Precision Matching: Sensible heat ratio reaches 100%, perfectly adapting to high heat density data center loads; matched with a fast-response electronic expansion valve for real-time cooling regulation.
  3. Energy-Saving EC Fan System: High-efficiency EC fans with N+1 redundancy, saving 20%-30% energy vs traditional AC fans; automatic speed adjustment based on cooling demand and air pressure.
  4. Intelligent Control & Monitoring: 7-inch touch screen with user-friendly interface; standard RS485 (optional SNMP/TCP/IP); supports up to 16 remote temperature/humidity sensors and BMS integration.
  5. Flexible Installation & Adaptability: Row-mounted design fits cold/hot aisle layouts, with multiple air supply directions (left/right/both sides, 45°/90°); wide voltage support (208-240V 1Ph-2Ph, 380-415V/460V 3Ph); and -15℃~45℃ operation (-35℃ with low-temperature kit).
  6. Reliable & Low-Maintenance: Uses R410A environmental refrigerant, matched with brand oil separators and drying filters; electrode humidifier with automatic cleaning, supporting non-stop maintenance; large-capacity liquid storage tank ensures stable operation in extreme temperatures.
ENQUIRY!
Categories: ,
Description

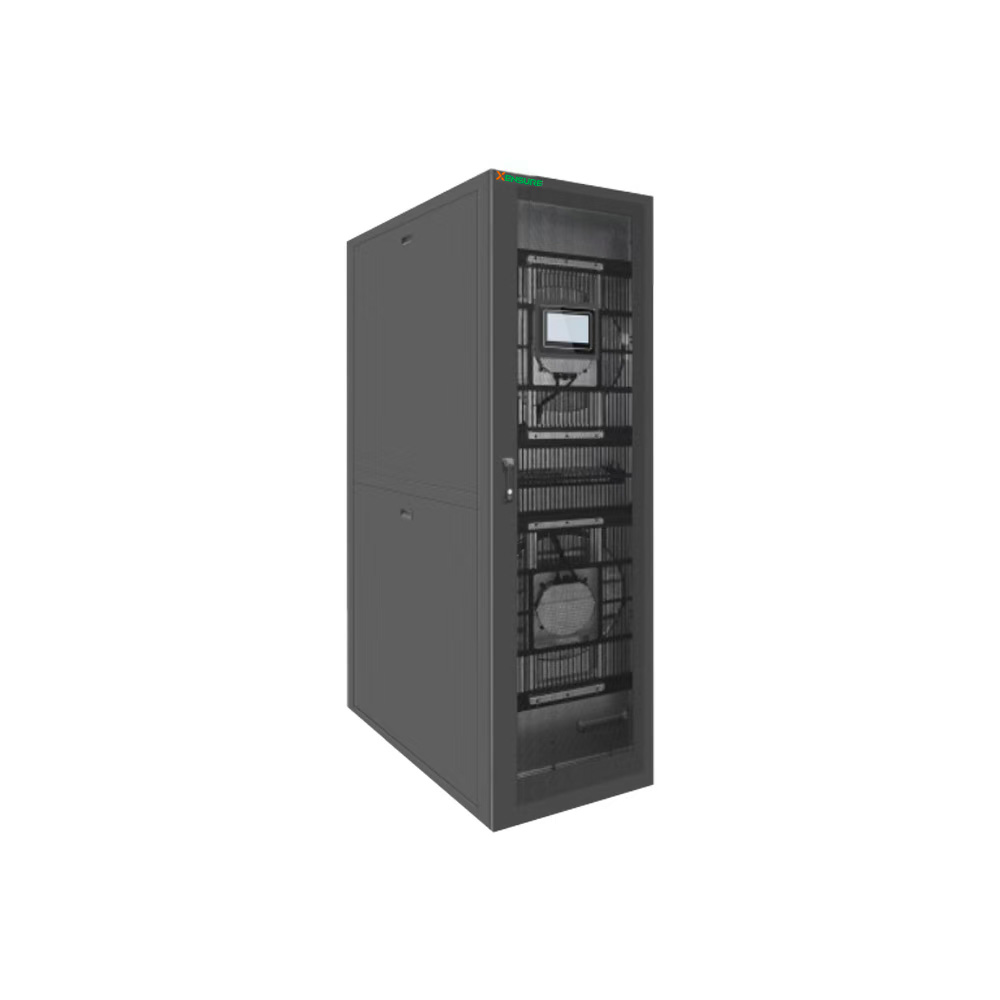

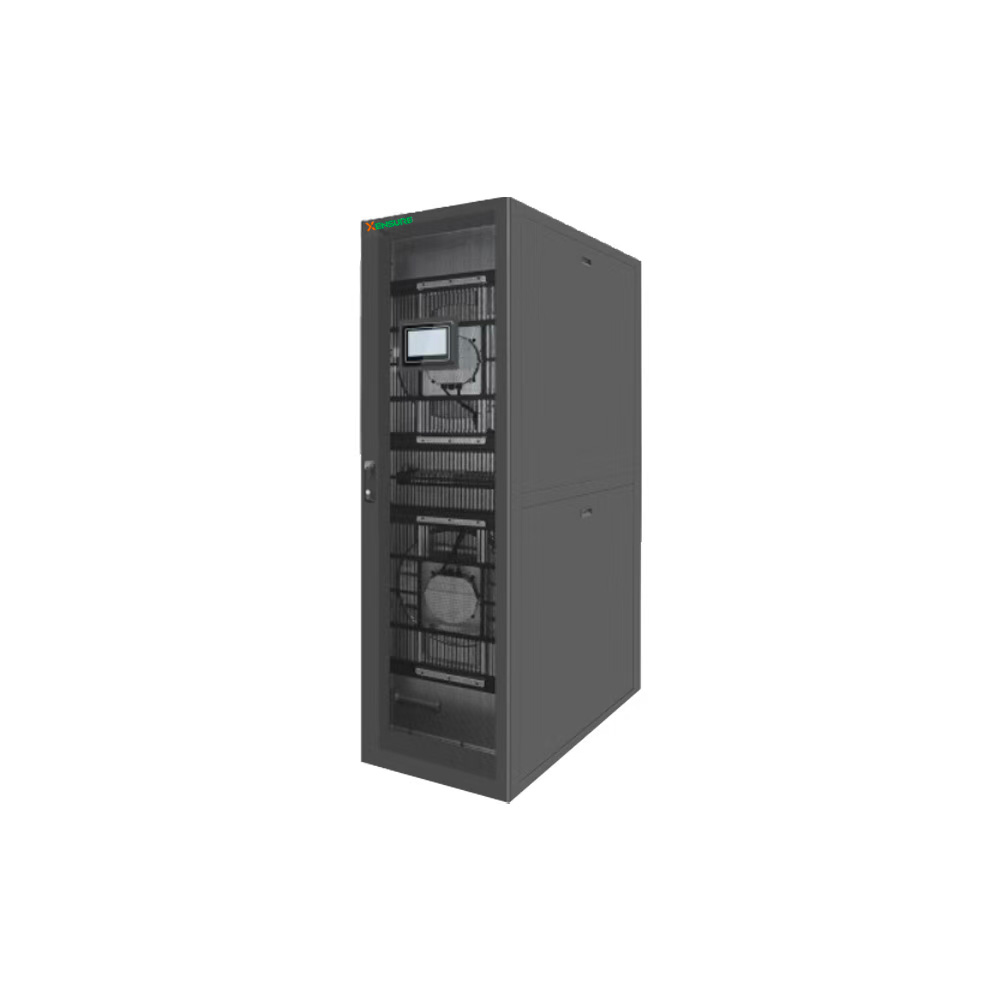

The SYIRC series water-cooled in-row precision air conditioners are an ideal choice for in-row cooling in green data centers. They utilize environmentally friendly R410A refrigerant and high-efficiency core components, offering excellent cooling efficiency and precise temperature control. They are compatible with multiple power supply modes (208-240V or 380-415V/460V), feature a compact design, and can be integrated into hot/cold aisle layouts. They operate stably without the need for raised floors and are suitable for high-density data centers, modular/containerized data centers, and hotspot retrofits, helping to reduce data center PUE.

Key Feature

  1. Stepless Capacity Adjustment: 20%-100% cooling capacity modulation via inverter compressor, energy efficiency improved by 33.3%-50%.
  2. 100% SHR & Precision Cooling: Perfectly matches high heat density loads with a fast-response electronic expansion valve.
  3. Energy-Saving EC Fans: N+1 redundancy, 20%-30% energy saving, and automatic speed regulation based on demand.
  4. Intelligent Monitoring: 7-inch touch screen, RS485 (optional SNMP/TCP/IP), supports 16 remote sensors and BMS integration.
  5. Flexible & Reliable: Multiple air supply directions, wide voltage/power adaptation, -35℃~45℃ operating range, low-maintenance design

Application Scenarios

  1. Eco-friendly & energy-efficient: Uses R410A refrigerant and high-efficiency EC fans for notable energy savings.
  2. Intelligent control: 7-inch touch screen for easy operation, with multiple communication interface options.
  3. Flexible & stable: Adjustable cooling capacity (20%-100%) and N+1 fan redundancy for reliable operation.
  4. Practical design: Compact size fits row-mounted installation, compatible with cold/hot aisle layouts (no raised floor needed).
  5. Wide adaptability: Supports multiple power supplies and optional configurations to meet diverse data center needs.

Detailed Datasheet

Model Cooling Capacity (kW) Air Supply Mode Cooling Type Air Volume (m³/h) Operating Voltage
SYIRC-025RC 19.5-47.1 In-row air supply, compatible with cold/hot aisle design Chilled Water Type 4800 208-240V/50-60Hz/1Ph-2Ph
SYIRC-045RC 30.4-76.0 In-row air supply, compatible with cold/hot aisle design Chilled Water Type 9000 380-415V/50-60Hz/3Ph, 200-230V/50-60Hz/3Ph, 460V/50-60Hz/3Ph
SYIRC-065RC 44.2-107.6 In-row air supply, compatible with cold/hot aisle design Chilled Water Type 11400 380-415V/50-60Hz/3Ph, 200-230V/50-60Hz/3Ph, 460V/50-60Hz/3Ph
