Home Product Precision Air Conditioner Room Cooling CRAC SYRC Series, Room Level Air Cooled Precision Air Conditioner,24KW-265.8KW
XST-HR Series High Rates Battery, 2V/6V/12V, 16W- 3200W(P15,25°C)
XST-HR Series High Rates Battery, 2V/6V/12V, 16W- 3200W(P15,25°C)
Back to products
XST-DC Series Deep Cycle Battery, 2V/6V/12V, 26Ah-3000Ah (C20, 25℃)
XST-DC Series Deep Cycle Battery, 2V/6V/12V, 26Ah-3000Ah (C20, 25℃)
Click to enlarge

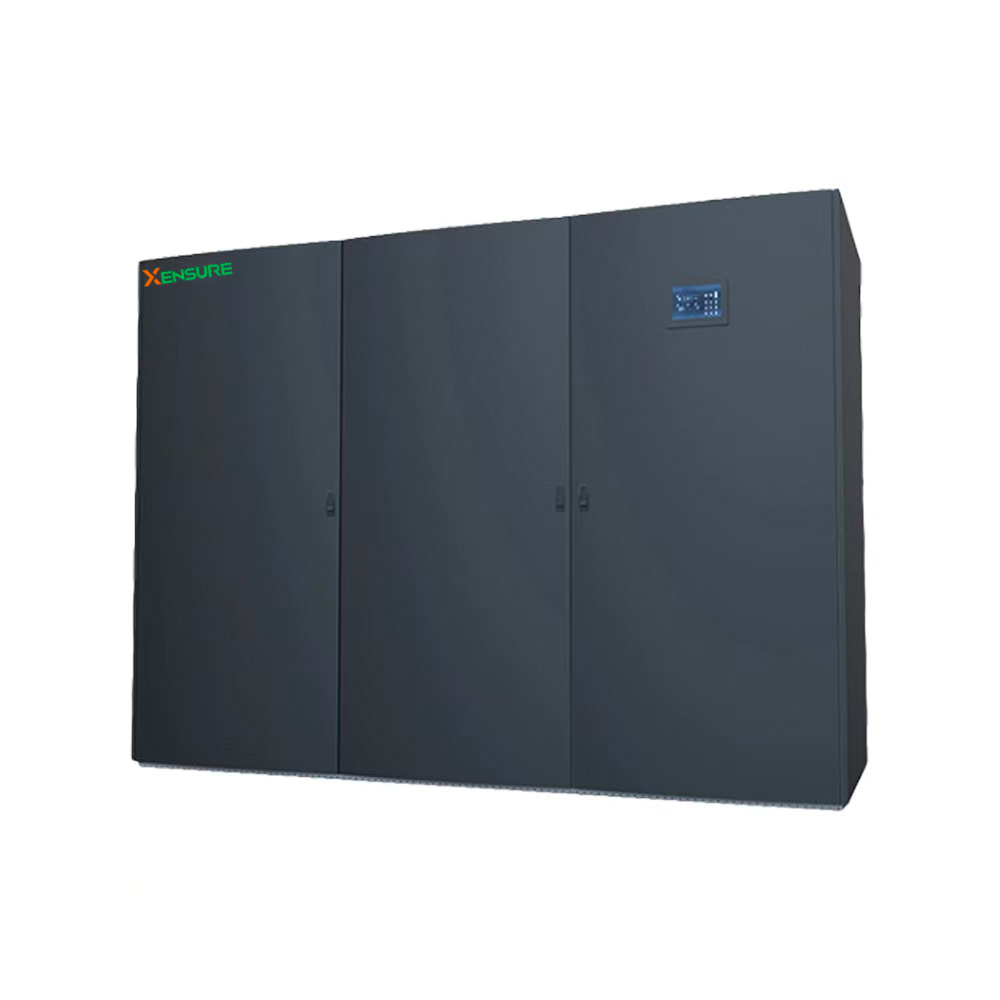

SYRC Series, Room Level Air Cooled Precision Air Conditioner,24KW-265.8KW

  1. Precise control: ±1℃ temp, ±5% humidity accuracy (15-35℃, 30-80% RH), 100% SHR for CW type.
  2. Energy-saving: EC fans, scroll compressors, EER≥3.0, R410A refrigerant.
  3. Flexible: 10+ cooling types, upflow/downflow modes, and a -35~50℃ operating range.
  4. Intelligent: 7-inch touchscreen, RS485 remote monitoring, 500 alarm records.
  5. Reliable: IP20/IP54 protection, multiple electrical safeguards, 24/7 stable operation.
ENQUIRY!
Categories: Precision Air Conditioner, Room Cooling CRAC
Share:
  • Description
  • Reviews (0)
Description

The SYRC Series CW Type Precision Air Conditioners offer 24-265.8 kW cooling capacity (adjustable by water temperature) with 100% SHR, EC/AC fans, and multiple 3Ph power supplies. Featuring precise temperature and humidity control, intelligent monitoring, and reliable protections, they’re ideal for large data centers, labs, and high sensible heat load precision environments.

Key Feature

Ideal for 24/7 continuous operation in high sensible heat load precision environments requiring strict temperature and humidity control, including:

  • Large-scale data centers, server clusters, and modular data centers
  • High-tech laboratories, standard test rooms, and calibration centers
  • Industrial automation control rooms and precision manufacturing workshops
  • Telecommunication switch rooms and UPS/battery rooms
  • Hospital test rooms and biochemical culture chambers

Application Scenarios

  • Data centers, computer rooms, and UPS battery rooms
  • Communication equipment rooms and mobile base stations
  • Laboratories, biochemical culture rooms, and hospital testing rooms
  • Industrial automation control rooms and precision manufacturing workshops
  • Standard testing rooms and calibration centers

Detailed Datasheet

Specification Details
Cooling Capacity 24KW-265.8KW
Air Supply Mode Upflow (U) / Downflow (D) dual options, compatible with raised floor and ceiling return air layouts

all models support flexible switching to adapt to different room structures

Cooling Type Chilled Water Cooling
Air Volume 9230 m³/h  ~ 38500 m³/h
Operating Voltage 208-240V / 50-60Hz / 1Ph-2Ph

380-415V / 50-60Hz / 3Ph

200-230V / 60Hz / 3Ph

460V / 60Hz / 3Ph



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SYRC Series, Room Level Air Cooled Precision Air Conditioner,24KW-265.8KW” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

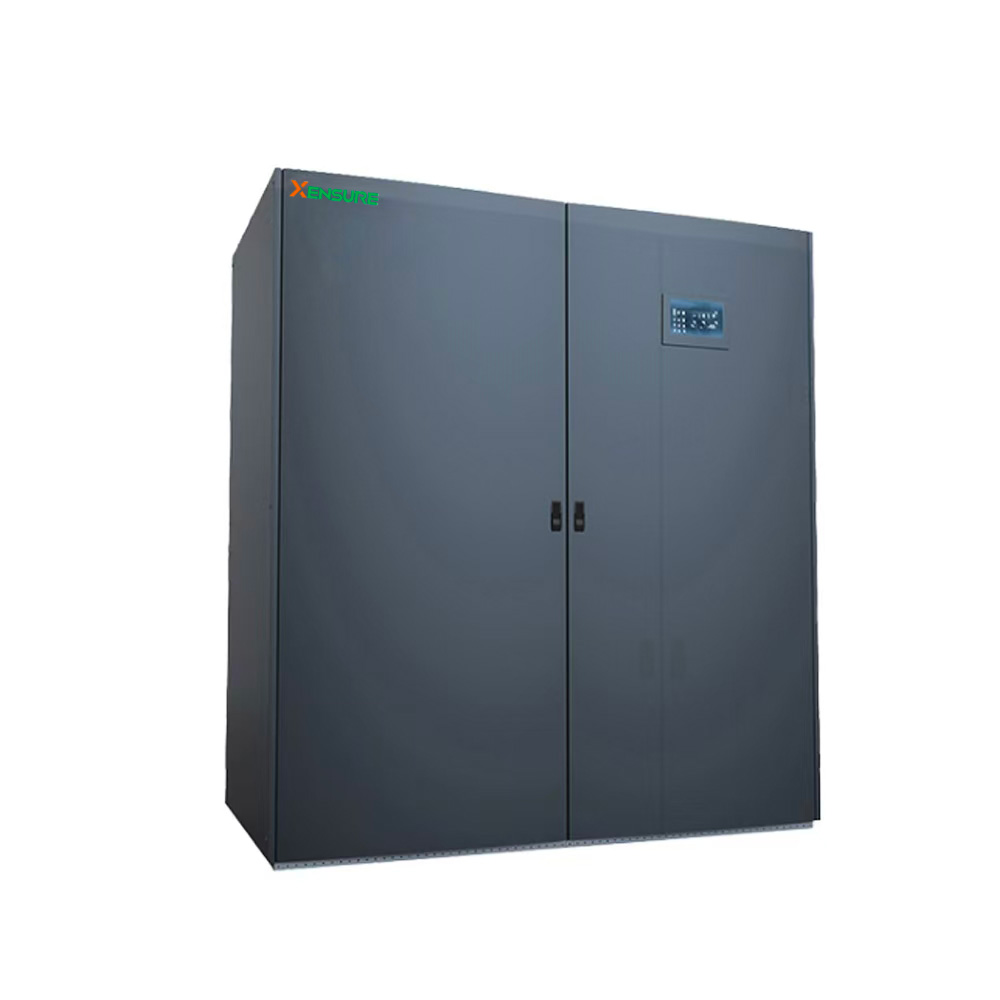

SYRC Series, Room Level Air Cooled Precision Air Conditioner,5.5KW-122.9KW
