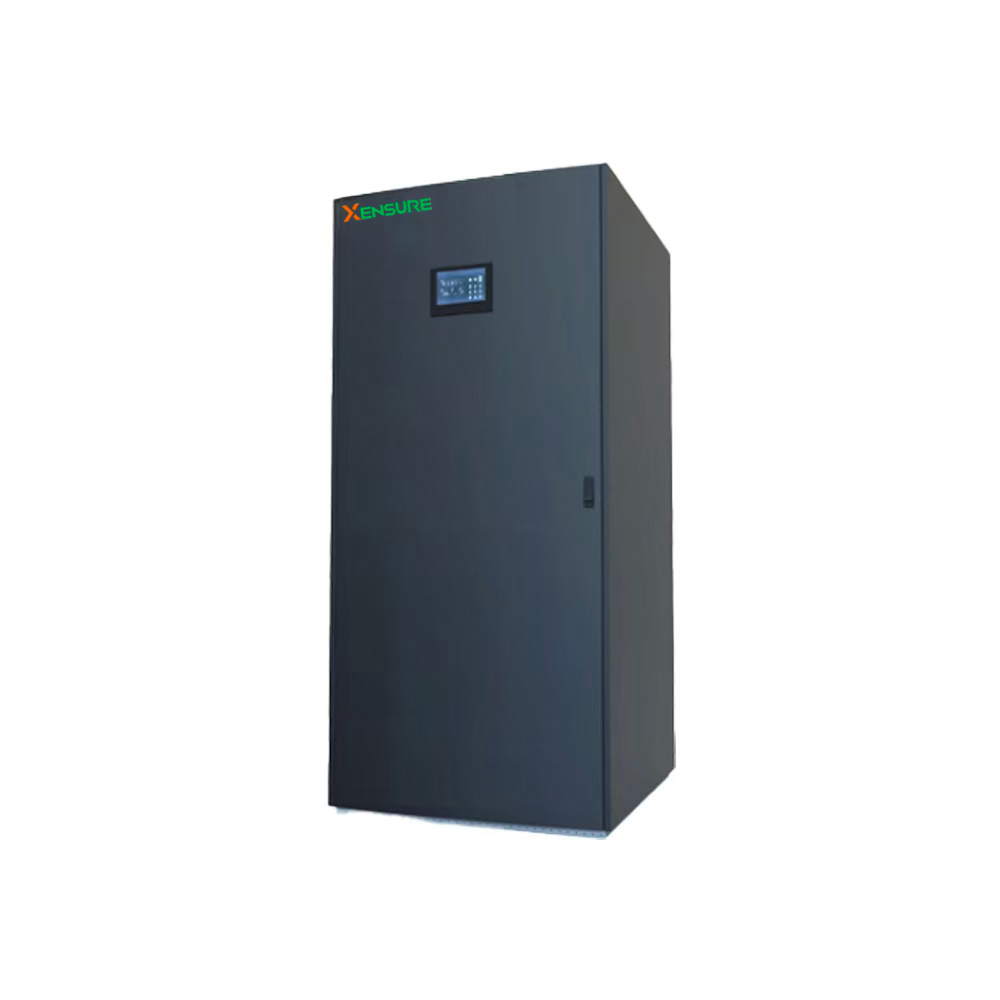

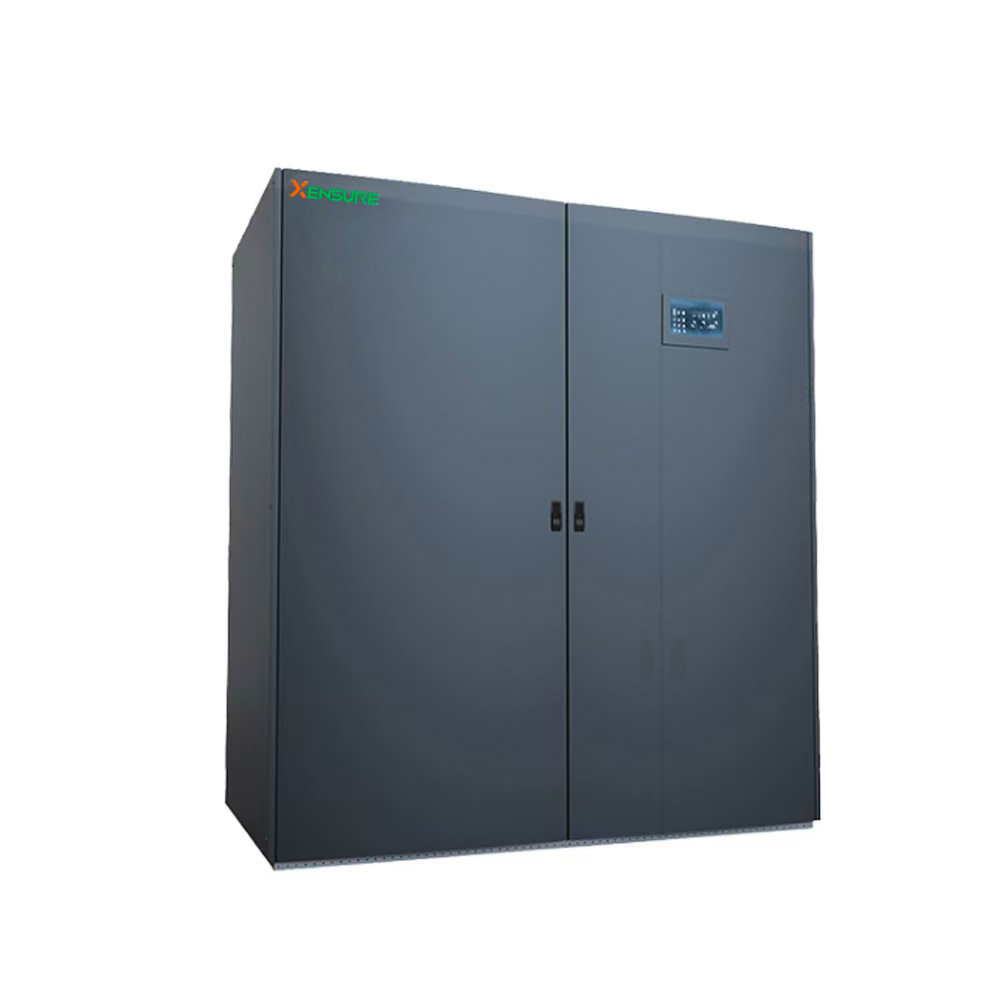

SYRC Series, Room Level Air Cooled Precision Air Conditioner,5.5KW-122.9KW

  1. Precise Temperature and Humidity Control: Temperature control accuracy of ±1℃, humidity ±5%, with a wide adjustment range of 15-35℃ and 30-80% RH, and a high sensible heat ratio suitable for precision applications;

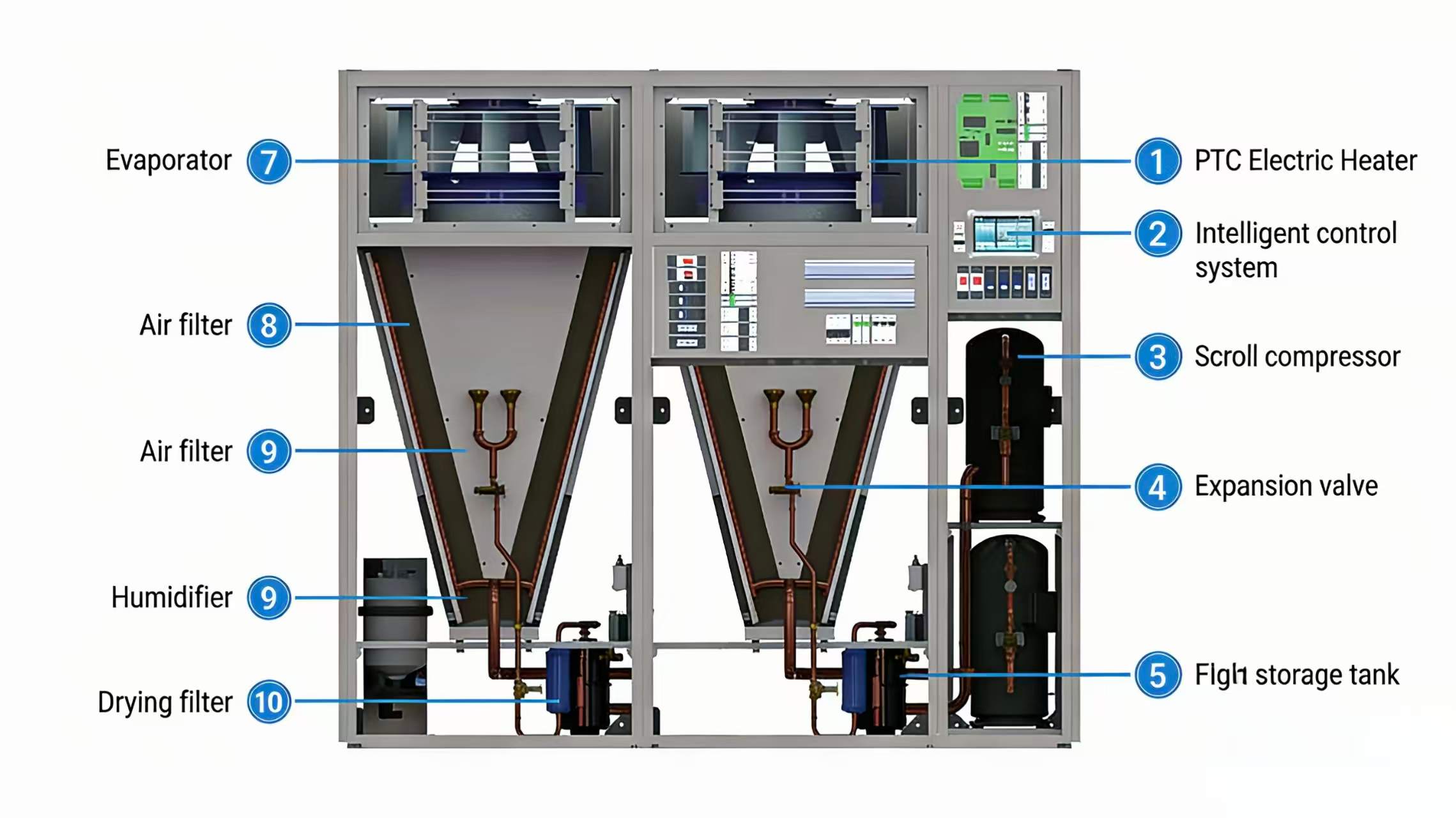

  2. High-Efficiency and Energy-Saving Design: Equipped with EC fans and scroll compressors, EER≥3.0, using environmentally friendly R410A refrigerant for lower energy consumption;
  3. Multi-Scenario Adaptability: Over 10 cooling types with optional top/bottom airflow and a wide operating temperature range of -35℃~50℃, suitable for data centers, laboratories, etc.;
  4. Intelligent and Convenient Operation and Maintenance: 7-inch touch screen + RS485 remote monitoring, supporting fault diagnosis and 500 alarm records, resulting in low maintenance costs;
  5. High Reliability Assurance: IP20 indoor unit / IP54 outdoor unit, multiple electrical protections, stable 24×7 uninterrupted operation.
ENQUIRY!
Categories: ,
Description

The SYRC series room-level air conditioners are precision units with cooling capacities ranging from 5.5 to 122.9 kW and airflow rates from 2000 to 27100 m³/h. They offer temperature control accuracy of ±1℃ and humidity control accuracy of ±5%, with a sensible heat ratio of ≥0.87. Featuring environmentally friendly R410A refrigerant and high-efficiency EC fans, they achieve an EER of ≥3.0, support a 380V three-phase power supply, and can operate stably 24/7, making them suitable for data centers and other demanding applications.

Key Feature

  • Temperature control accuracy of ±1℃ and humidity control accuracy of ±5%, precisely suited for demanding applications
  • Cooling capacity of 5.5-122.9 kW, EC fan + R410A refrigerant, EER ≥ 3.0
  • Multiple cooling types, top and bottom airflow and a wide operating temperature range of -35℃ to 50℃
  • 7-inch touchscreen + remote monitoring, 24/7 stable operation + multiple protection features

Application Scenarios

  • Data centers, computer rooms, and UPS battery rooms
  • Communication equipment rooms and mobile base stations
  • Laboratories, biochemical culture rooms, and hospital testing rooms
  • Industrial automation control rooms and precision manufacturing workshops
  • Standard testing rooms and calibration centers

Detailed Datasheet

Specification Details
Cooling Capacity  5.5kW (MA05 U/D) ~ 122.9kW (DA120 U/D)
Air Supply Mode Upflow (U) / Downflow (D) dual options, compatible with raised floor and ceiling return air layouts

all models support flexible switching to adapt to different room structures
Cooling Type Air-cooled
Air Volume 2000 m³/h (MA05 U/D) ~ 6700 m³/h (MA25 U/D)
Operating Voltage 208-240V / 50-60Hz / 1Ph-2Ph

380-415V / 50-60Hz / 3Ph

200-230V / 60Hz / 3Ph

460V / 60Hz / 3Ph
