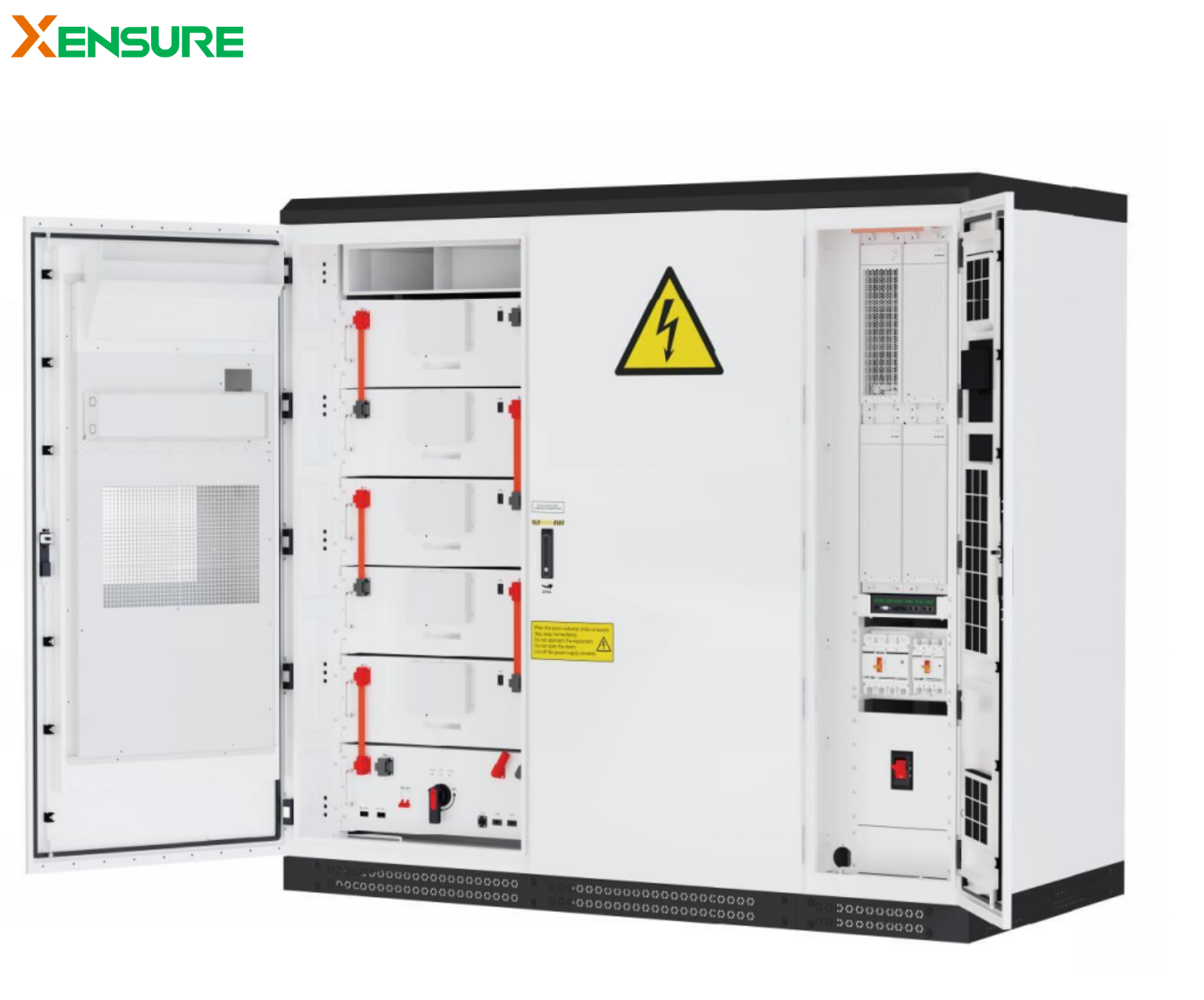

215kWh +120kW High Voltage Integrated Energy Storage Cabinet

  • Powerful Integrated Solution: Combines 215kWh of high-voltage battery capacity with a matched 120kW PCS for high-performance C&I storage.

  • High-Efficiency Conversion: System efficiency exceeds 90% @AC side, providing stable 400VAC output for industrial grids.

  • Smart Solar Integration: Includes a 60kW MPPT controller (250-850VDC) for high-efficiency direct PV input and energy management.

  • Rapid Grid Response: STS transfer switch power of 240kW with an on/off grid switching time of less than 20ms.

  • Intelligent Thermal Management: Features integrated air-cooling and air-conditioning units to optimize battery cell performance.

  • Comprehensive Safety Suite: Fully equipped with an Aerosol fire suppression system and certified for international UL, IEC, and CE standards.

ENQUIRY!
Categories: ,
Description

This is a powerhouse of integrated energy technology, providing a complete energy storage and power conversion station in a single cabinet. Featuring 215kWh of LiFePO4 storage and a 120kW PCS, this system is engineered for industrial parks and commercial complexes that require high-power energy management. With its integrated MPPT for solar input and ultra-fast grid switching, this product delivers a seamless, safe, and efficient solution for energy arbitrage and reliable mission-critical backup.

Key Features:

  • Flexible Stacking & Deployment: Its freely stackable design inside the cabinet saves space and simplifies installation, while the IP55 rating ensures durability in diverse locations.

  • Smart BMS & EMS Management: Integrated management systems provide full oversight of battery health, load balancing, and energy flow to maximize the ROI of your energy asset.

  • Extended Service Life: Utilizes high-quality 280Ah cells to guarantee 8,000 cycles at 60% DOD, ensuring over a decade of high-performance operation.

  • Precision Environmental Control: The built-in air conditioner maintains the battery environment even in ambient temperatures up to 50°C, preventing thermal degradation.

Application Scenarios:

  • Industrial Parks: Provides high-powered energy peak-shaving and backup for automated manufacturing lines.

  • Solar Microgrids: Acts as the central energy and conversion hub for industrial-scale solar EV charging and microgrid projects.

  • Data Centers: Delivers high-voltage, high-capacity backup power to maintain server uptime during grid outages.
