645kWh+250kW 20 Feet Commercial&Industrial BESS

  • Grid-Scale Capacity: Provides a rated energy of 645kWh with a powerful 250kW AC output in a 20-foot container.

  • Exceptional Conversion: High-efficiency architecture delivers a 99% conversion efficiency with an AC-side cycle efficiency of over 90%.

  • Rapid Power Response: Features a lightning-fast response time of less than 20ms for critical grid-balancing operations.

  • Ultimate Safety Standards: Equipped with Perfluorohexanone fire suppression and IP55 protection for the most demanding environments.

  • Smart Solar Integration: Built-in MPPT controller (5 channels, 50kW each) for direct, efficient photovoltaic input.

  • Maintenance Friendly: Fully pre-assembled modular design allows for easy O&M and transportation without on-site module handling.

ENQUIRY!
Categories: ,
Description

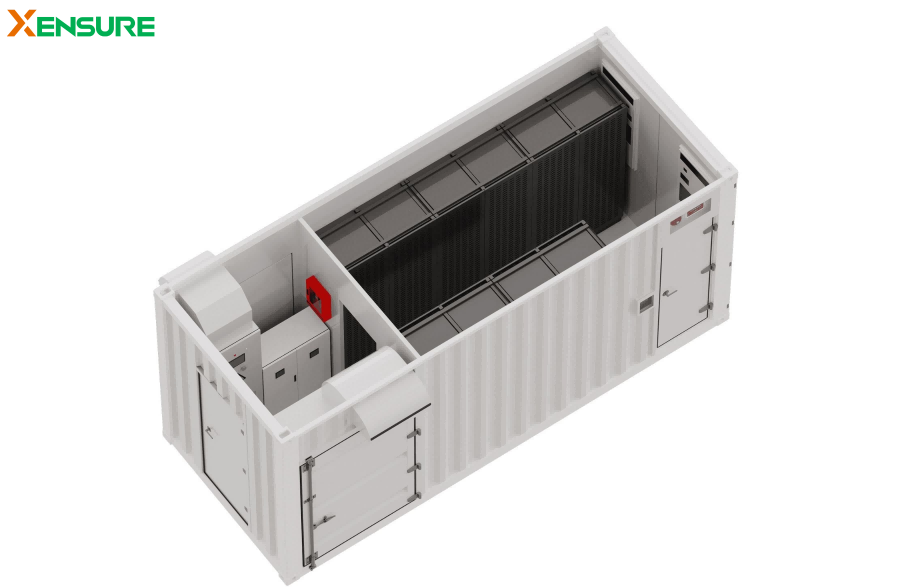

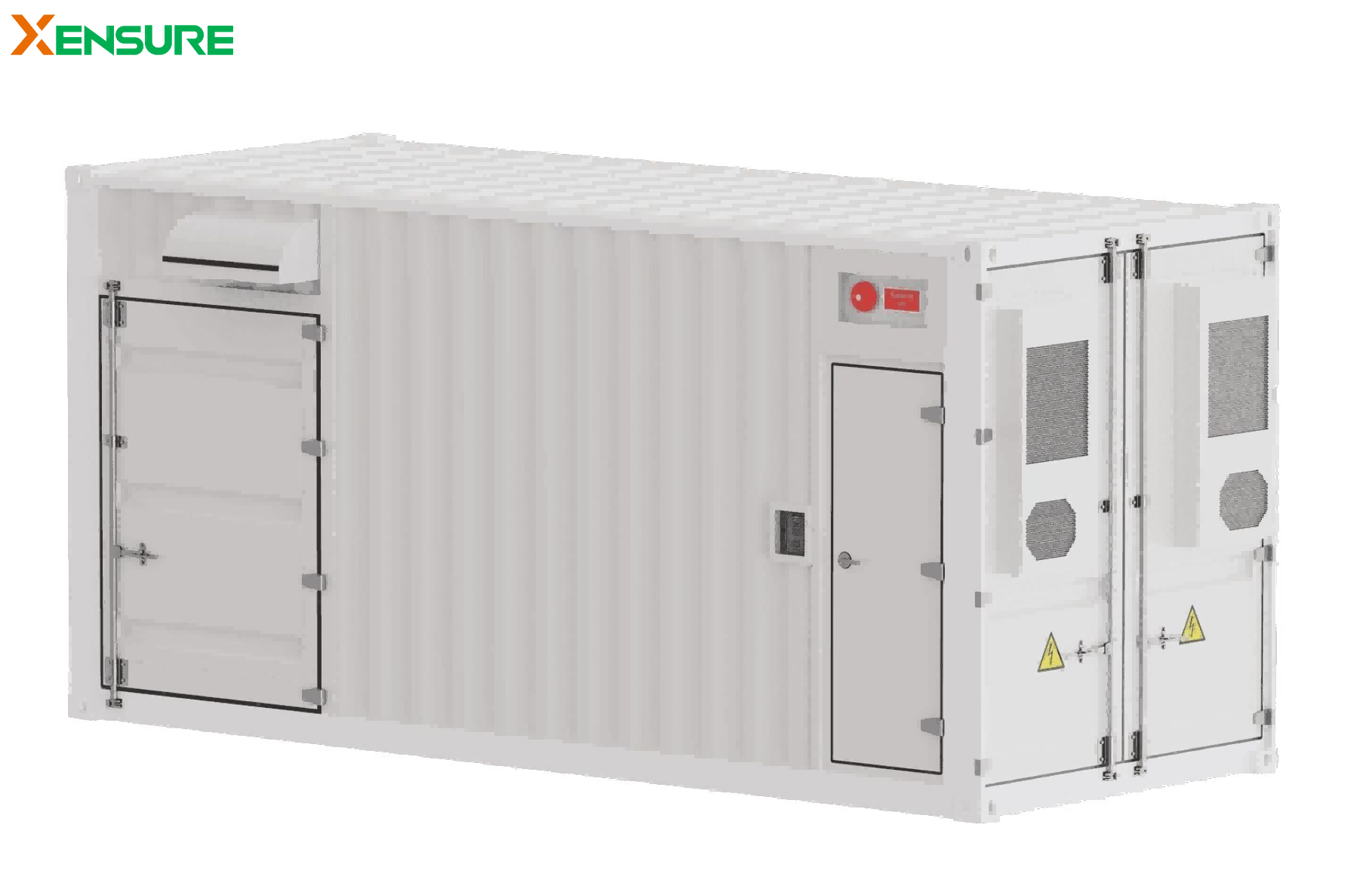

This product with 645kWh+250kW is a premier 20-foot BESS container designed to meet the rigorous energy demands of large-scale industrial and utility-grade projects. Utilizing high-performance 280Ah LiFePO4 cells, it provides the massive energy density and rapid response (20ms) required for grid stabilization, peak-shaving, and energy arbitrage. As a customizable OEM flagship, this product with 645kWh features an integrated design with high-level fire protection and air cooling, offering a safe and reliable energy backbone for modern high-powered industries.

Key Features:

  • Optimized Energy Yield: Features high-efficiency APFC and MPPT (5 channels) to ensure maximum energy capture from solar sources and efficient grid output.

  • Rugged Outdoor Reliability: Designed for a long cycle life (8,000+ cycles) with an IP55 protection class and advanced air-cooling to prevent thermal degradation.

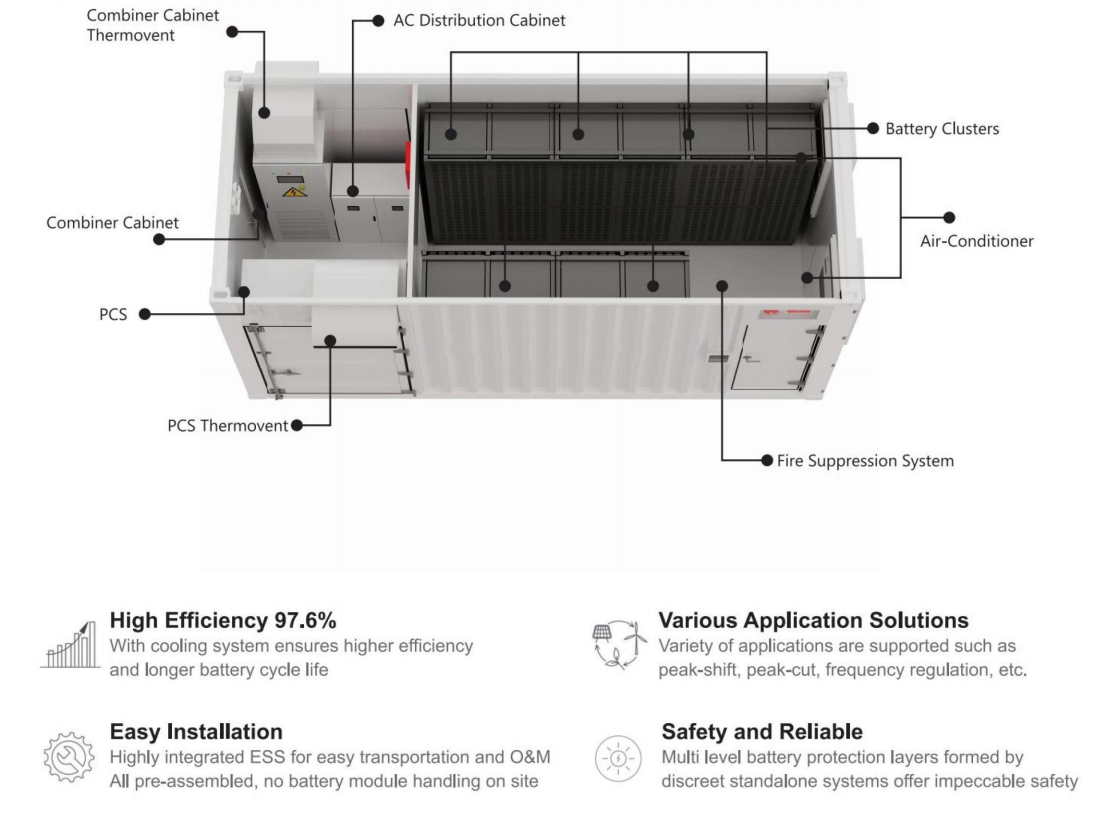

  • Intelligent Cluster Control: The system manages 15 battery clusters via a high-voltage combiner cabinet (630A), ensuring precise balancing across the entire energy asset.

  • Enhanced Safety Layers: Incorporates Perfluorohexanone fire suppression, widely recognized for its superior efficiency in safeguarding lithium battery systems.

Application Scenarios:

  • Solar EV Fast-Charging: Acts as a giant power buffer for high-speed EV charging hubs in commercial centers.

  • High-Powered Industry: Delivers consistent backup and peak-shaving for large-scale manufacturing and industrial parks.

  • Energy Arbitrage & Microgrids: Enables smart energy management and grid stabilization for residential complexes and microgrid projects.
