XST 122/143KWH Outdoor Energy Storage All-in-one Cabinet
XST 122/143KWH Outdoor Energy Storage All-in-one Cabinet
Click to enlarge

XST 61/71KWH Outdoor Energy Storage All-in-one Cabinet

  • Integrated All-in-One Design: Combines BMS, fire protection, air-cooling, and PCS into a single outdoor cabinet for rapid deployment.

  • High Energy Density: Offers 61kWh or 71kWh of nominal energy in a compact footprint (1056 x 1174 x 1561mm).

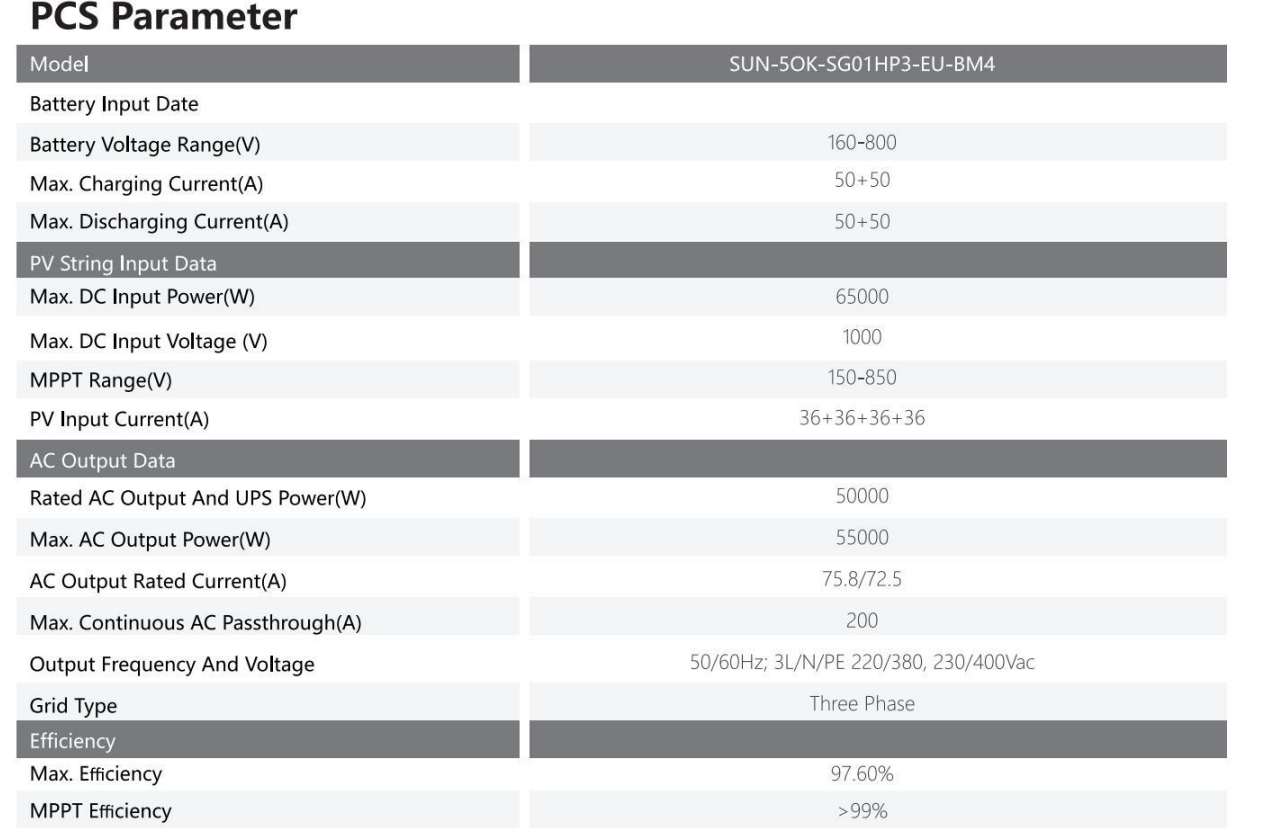

  • Powerful Inverter Support: Integrated with a high-performance hybrid inverter (50kW PCS) supporting 150-850V MPPT range.

  • Ultimate Safety Standards: Equipped with an Aerosol fire-fighting system and certified to international standards including UL, IEC, and CE.

  • Smart APP Connectivity: Features remote monitoring via a self-developed APP and Wi-Fi for 24/7 management anytime, anywhere.

  • Extreme Durability: Operates reliably in temperatures ranging from -20°C to 50°C with an IP-rated outdoor enclosure.

ENQUIRY!
Categories: ,
Description

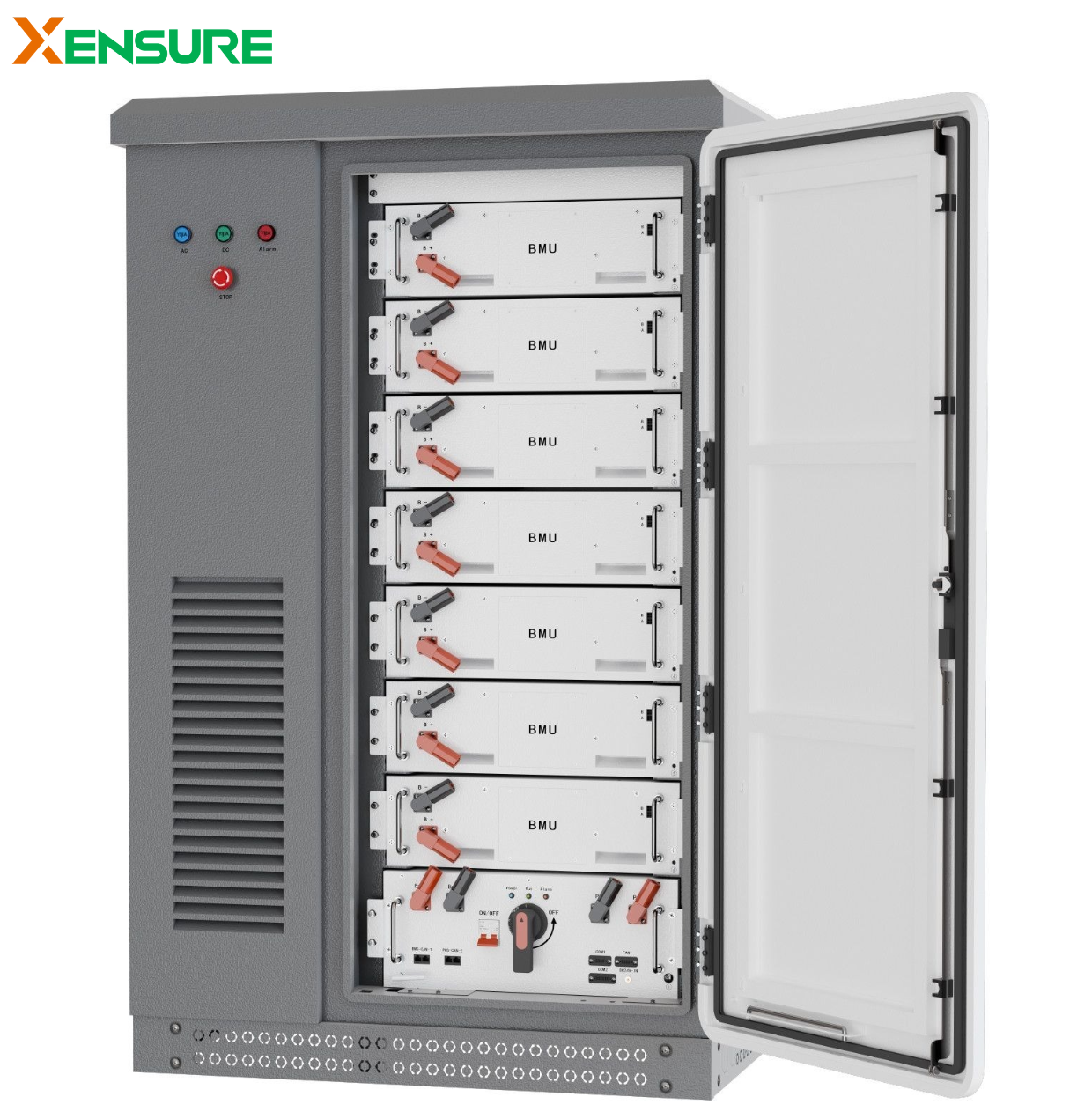

This Series (61kWh-71kWh) is an exquisite outdoor energy storage cabinet designed for plug-and-play commercial and industrial (C&I) applications. Featuring an integrated design, it streamlines installation by pre-assembling the battery system, BMS, and fire protection into one rugged, air-cooled unit. With a 50kW PCS capacity and high-efficiency MPPT, this Series is the perfect solution for solar energy storage, EV charging, and peak-shaving at commercial centers or industrial facilities.

Key Features:

  • Exquisite Craftsmanship: Designed for high specific energy and environmental friendliness, the cabinet offers full space for each cell to achieve its best performance.

  • Smart Power Conversion: The integrated inverter supports high-efficiency conversion (97.5%) and features three-phase output for industrial grid compatibility.

  • Enhanced Safety Layers: Multi-level safety features including an Aerosol fire suppressant and smart BMS high-power management ensure reliable, worry-free operation.

  • Remote Efficiency: Manage your entire energy asset via a smartphone APP with real-time updates on charging status, health, and system energy flow.

Application Scenarios:

  • Commercial Centers: Ideal for retail centers and offices looking to reduce grid demand and utilize solar energy.

  • Industrial Peak Shaving: Helps factories avoid peak energy tariffs and provides high-power stability for manufacturing.

  • Solar EV Charging: Acts as the energy hub for outdoor EV charging infrastructures in public spaces or corporate campuses.
