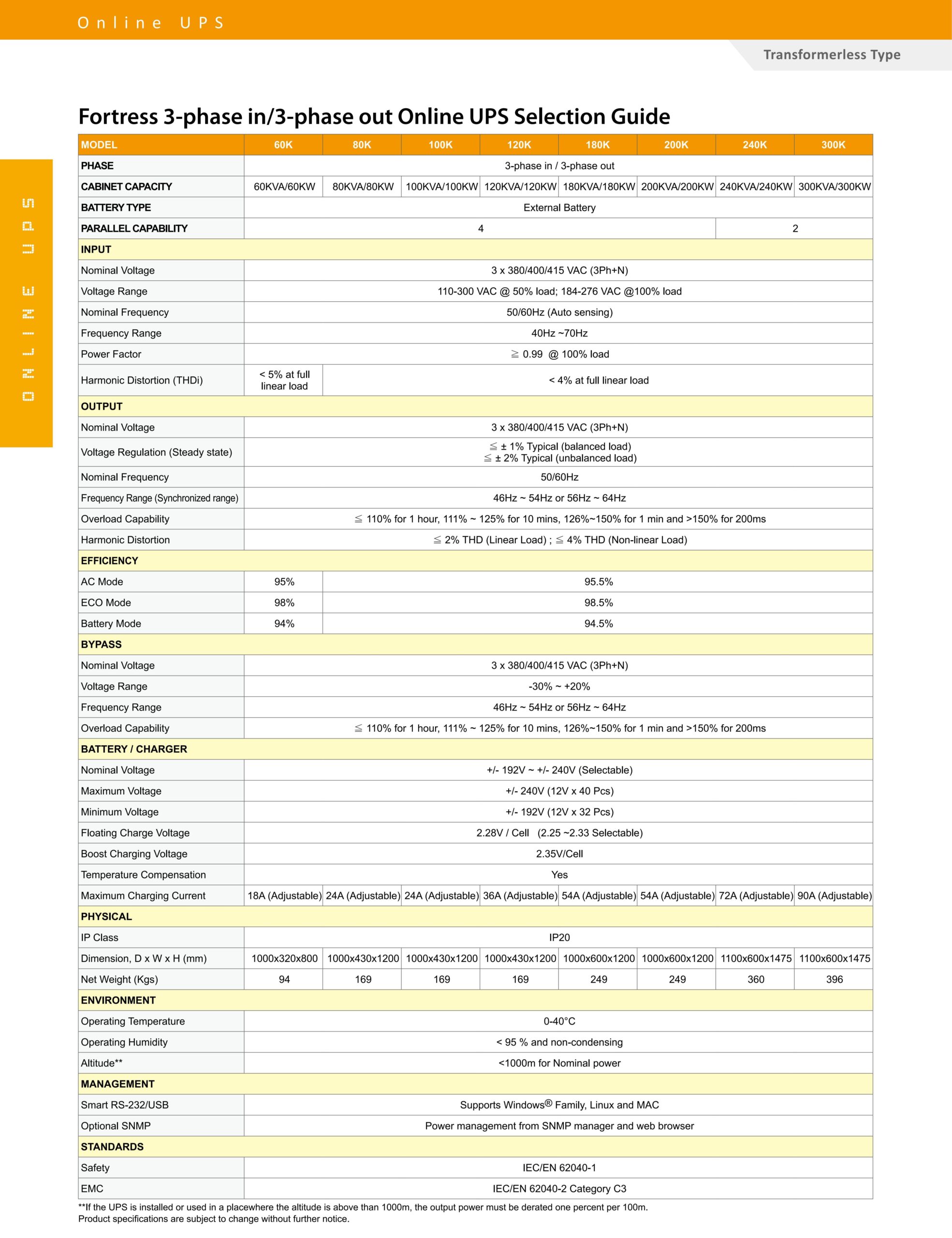

Fortress 3P/3P 60KVA-300KVA with Power Module 60kVA

Cost-Effective 3-Phase Standalone Online UPS with Easy-Replaceable & Load-Sharing Module Design.

Fortress is equipped with pluggable power modules with front access terminal wiring (for 100K/120K models), making maintenance and replacement quick and easy, and decreasing MTTR.

Fortress also comes with a built-in 4-switch including mains input, bypass input, output, and maintenance bypass switch.

РАССЛЕДОВАНИЕ!
Category:
Описание

Backfeed detection built-in
Single power module on/off control through the LCD panel
Pluggable power module design with front access to decrease MTTR
Parallel redundancy capability for power guarantee
Parallel operation up to 4 units with a common battery
Power walk-in function
Dual mains inputs
Built-in 4 switches, including Mains input, bypass input, output and maintenance bypass switch
Flexible battery configuration and adjustable charging current
Optional extra communication is available
Emergency power off function (EPO)
Generator compatible
50Hz/60Hz frequency converter mode
Compatible with Lithium-ion battery


Отзывы (0)

Отзывы

Пока нет отзывов.

Будьте первым, кто оставит отзыв»Fortress 3P/3P 60KVA-300KVA with Power Module 60kVA”

Ваш адрес электронной почты не будет опубликован. Обязательные поля отмечены *

Сопутствующие товары

Galleon ll 3P/3P Tower PF 1.0 10kVA-200kVA

Unity output power factor
Galleon Il 3P/3P 100KL-200KL provides better output power factor up to 0.9 with higher performance and efficiency for critical applications.
It's the same as the Galleon series with programmable power management outlets which can extend available battery time to critical devices by shuttingdown unnecessary devices.
This Galleon ll 3P/3P 100KL-200KL series is also suitable for laser printer and ultrasound system load.
РАССЛЕДОВАНИЕ!

LV Series Online Rack Mount UPS, 1~3KVA, 1:1phase, PF: 0.9, 110V In/ 110V Out

  • High-Frequency Online Double Conversion: Ensures continuous, clean power by converting AC to DC and back to AC, isolating equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to provide precise control, high reliability, and superior performance.

  • Wide Input Adaptability: Features a broad input voltage range of 60-145V and frequency range of 40-70Hz, ideal for unstable grid conditions.

  • High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) to support modern, high-density IT loads.

  • Active Power Factor Correction: Input power factor is greater than 0.99, minimizing electrical interference and improving energy efficiency.

  • Generator Compatible: Stable performance and frequency auto-sensing allow for seamless integration with various generator sets.

  • Space-Saving 2U Rack Design: Compact 2U form factor fits easily into standard server racks, optimizing space in data centers and server rooms.

  • Smart Management & Communication: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote monitoring and automated server/NAS shutdown.

РАССЛЕДОВАНИЕ!

Galleon Pro Value 3P/3P PF 0.9 10kVA 15kVA 20kVA from Shenzhen Factory

Customized dual-mains inputs Galleon Pro Value is the high-density version of the Galleon series of double-conversion online UPS with an output power factor 0.9. Ranging from 10KVA to20KVA, it’s designed in a small footprintswith DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times. Its dual mains inputs willsecure the power reliability in a power fluctuation area.
РАССЛЕДОВАНИЕ!

Galleon Pro Value 3P/3P 10kVA 15kVA 20kVA from Shenzhen Factory

Customized dual-mains inputs Galleon Pro Value is the high-density version of the Galleon series of double-conversion online UPS with an output power factor 0.9. Ranging from 10KVA to20KVA, it’s designed in a small footprintswith DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times. Its dual mains inputs willsecure the power reliability in a power fluctuation area.
РАССЛЕДОВАНИЕ!

Galleon Ill 3P/3P & 3P/IP & 1P/IP Tower 10kVA 20kVA

PF 1.0 High Frequency UPS The Galleon III 3P/3P, 3P/1P & 1P/1P Tower (10K-20K) is a true double-conversion UPS engineered to deliver exceptional performance and reliability for critical power applications. With advanced DSP technology and a unity output power factor (1.0), it ensures superior efficiency and system stability. The UPS offers flexible configuration options—3-in/3-out, 3-in/1-out, or 1-in/1-out—to meet diverse installation needs. Designed for energy efficiency and operational flexibility, the Galleon III features active power factor correction, dual AC inputs, and ECO mode operation. It also supports frequency converter mode (50Hz/60Hz), generator compatibility, and adjustable battery configurations for long-run models. For scalability and redundancy, up to four units can operate in parallel with a common battery bank, making it a reliable choice for mission-critical environments.
РАССЛЕДОВАНИЕ!

HV Series Online Rack Mount UPS, 220В, 1~3KVA, 1:1phase, PF: 0.9

  • High-Frequency Online Double Conversion: Delivers continuous, pure sine wave power by isolating connected equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to ensure high reliability, precise control, and superior system performance.

  • Wide Input Adaptability: Features an ultra-wide input voltage range of 90V–300V and frequency range of 40Hz–70Hz to handle unstable grid environments.

  • High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) for modern high-density IT loads.

  • Space-Saving 2U Design: Compact 2U rack-mount form factor optimizes valuable space in standard server cabinets.

  • Generator Compatible: Active power factor correction (>0.99) and frequency auto-sensing ensure seamless integration with generator sets.

  • Accepts Specialized Loads: Specifically designed to accommodate laser printers and ultrasound system loads (customization available).

  • Smart Monitoring: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote management and automated server/NAS shutdown.

РАССЛЕДОВАНИЕ!

Fortress 3P/3P 80kVA-800kVA with Power Module 80kVA

Cost-Effective 3-Phase Standalone Online UPS with Easy-Replaceable & Load-Sharing Module Design.

Fortress is equipped with pluggable power modules with front access terminal wiring (for 100K/120K models), making maintenance and replacement quick and easy, and decreasing MTTR.

Fortress also comes with a built-in 4-switch including mains input, bypass input, output, and maintenance bypass switch.

РАССЛЕДОВАНИЕ!

Galleon Pro 3P/3P Tower PF 0.9 10kVA 15kVA 20kVA 30kVA

Galleon Pro is the high density version of the Galleon series of double-conversion online UPS with aoutput power factor 0.9.

Ranging from 10KVA to 30KVA,it's designed in small footprints with DSP technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times.

Its dual mains inputs will secure thepower reliability in power fluctuation area.

РАССЛЕДОВАНИЕ!
