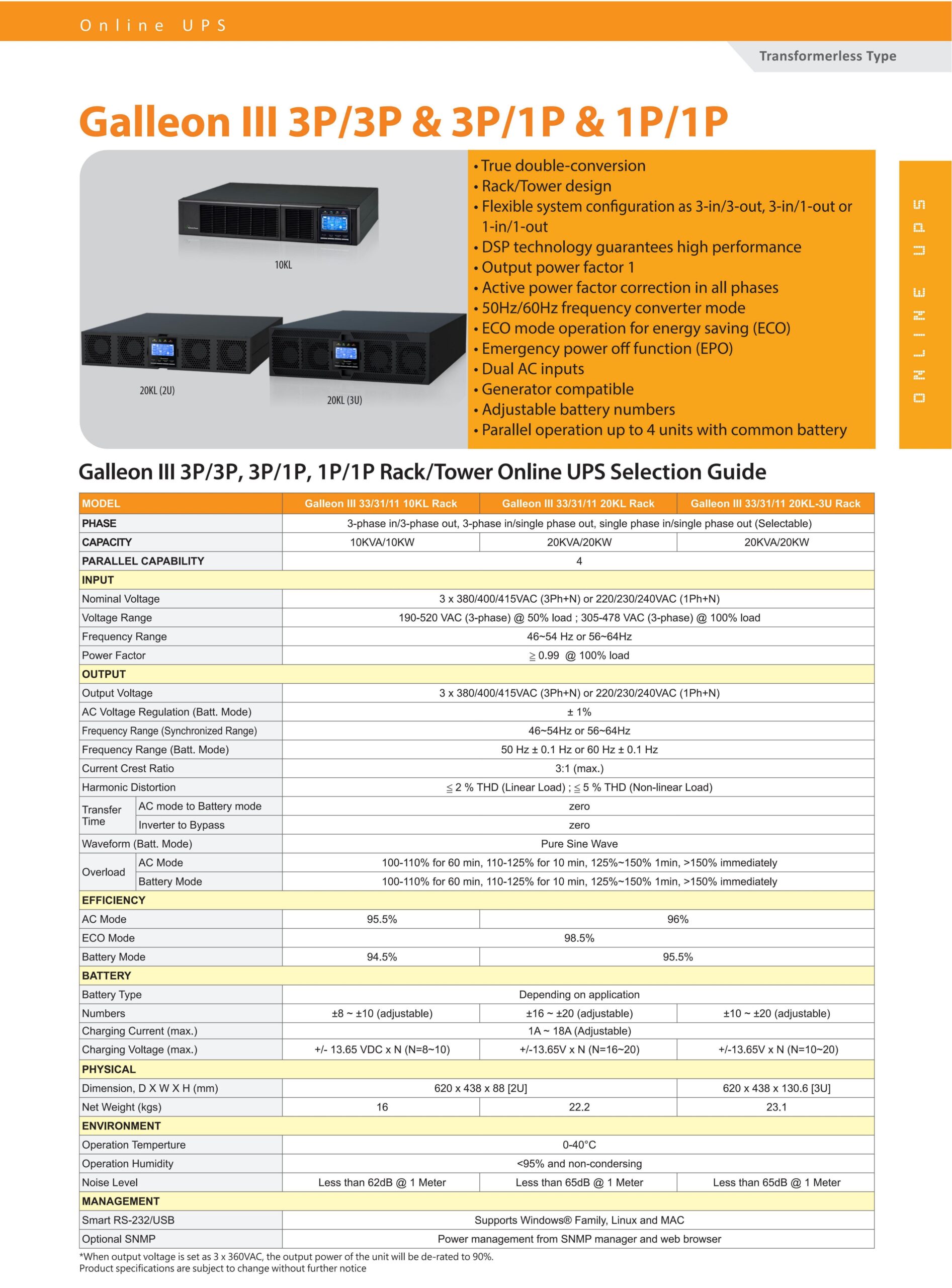

Galleon Ill 3P/3P & 3P/IP & 1P/IP Tower 10kVA 20kVA
Galleon Ill 3P/3P & 3P/IP & 1P/IP Tower 10kVA 20kVA
Click to enlarge

Galleon Ill 3P/3P & 3P/IP & 1P/IP Rackmount 10kVA 20kVA

PF 1.0 high-frequency UPS

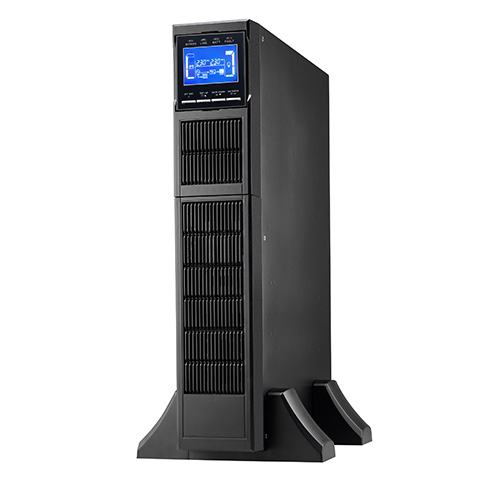

The Calleon I1 3P/3P & 3P/1P & 1P/1P RT 10KL/20KL/20KL-3U Series is a true double-conversion, high-performance UPS designed forreliable power protection in critical applications. Featuring a unity output power factor (1.0),it delivers maximum efficiency andperformance.
Its flexible design supports rack or tower installation and offers multiple system configurations including 3-in/3-out, 3-in/1-out, or 1-in/-out.
Equipped with advanced DSP technology, dual AC inputs, and active power factor correction,it ensures stableand clean power output under all conditions.
The system also supports ECO mode operation, generator compatibility, and adjustablebattery numbers for optimized power deployment.
Up to four units can operate in parallel with a common battery bank, providing scalable capacity and redundancy for mission-critical operations.
ENQUIRY!
Category:
Description
True double-conversion
Rack/Tower design
Flexible system configuration as 3-in/3-out, 3-in/1-out or 1-in/1-out
DSP technology guarantees high performance
Output power factor 1
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving (ECO)
Emergency power off function (EPO)
Dual AC inputs
Generator compatible
Adjustable battery numbers
Parallel operation up to 4 units with common battery
