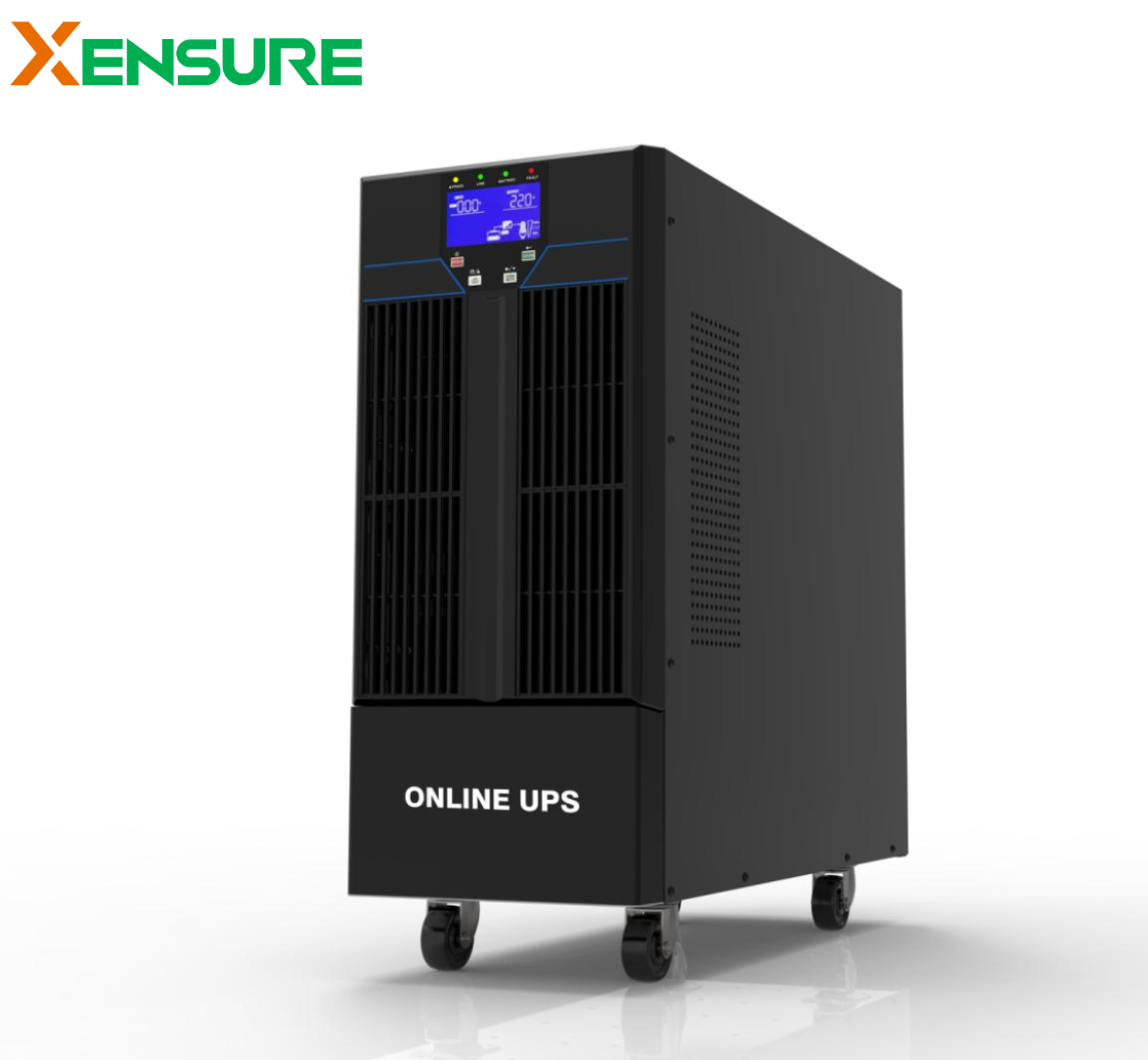

The HV 31 Series is a premium tower-based Online Double Conversion UPS designed to deliver robust and reliable power protection for high-capacity applications ranging from 10kVA to 20kVA. With its unique 3:1 phase configuration, this series provides the flexibility to operate with either single-phase or three-phase inputs while delivering a stable single-phase output. Engineered with advanced DSP control and three-level inverter technology, it ensures maximum efficiency and superior power quality for sensitive electronic equipment. As an OEM-ready solution, the HV 31 Series offers a perfect balance of performance and adaptability for both office and industrial environments.
Key Features:
-
Three-Level Inverter Technology: Enhances system efficiency and significantly reduces output harmonics, ensuring cleaner power for your devices.
-

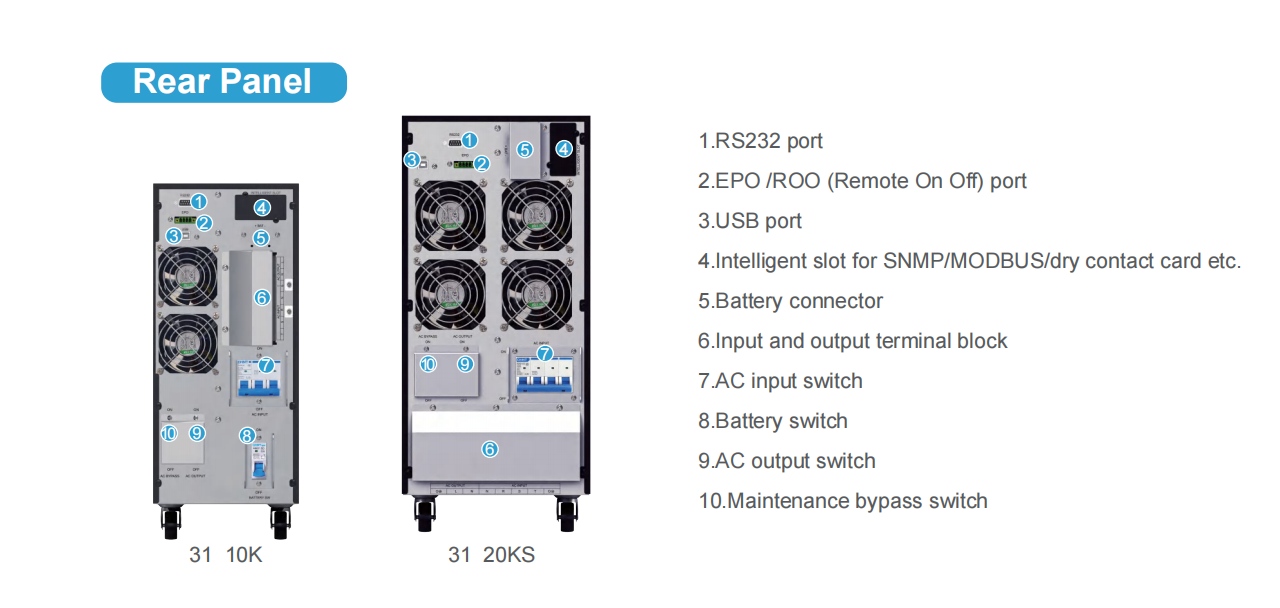

Умное управление & Коммуникация: Стандартный порт RS232 с дополнительным USB, RS485, SNMP, and AS400 cards for comprehensive remote monitoring and NAS shutdown support .
-
Совместимость с генератором: High input power factor (>0.99) and frequency auto-sensing make it perfectly compatible with various generator sets.
-
Cold Start & Smart Recovery: Includes a cold start function for emergency activation without mains power and supports economic (ЭКО) operation mode to maximize energy savings.
-
Rugged Reliability: Built with strong glass fiber base (FR4) double-sided PCBs and conformal coating to withstand harsh environmental conditions.
-
Frequency Converter Mode: Flexible operation as a frequency converter, allowing for 50Hz input/60Hz output or vice-versa.
Сценарии применения:
-
Data Centers & IT Infrastructure: Ideal for protecting server rooms, networking equipment, and storage systems with its high-density power factor.
-
Healthcare & Medical Systems: Capable of supporting specialized loads such as ultrasound systems and sensitive diagnostic equipment (customized).
-
Industrial Automation: Suitable for industrial control devices and manufacturing lines that require stable 3-phase input and reliable single-phase output.
-
Commercial & Retail: Ensures zero downtime for large-scale POS systems, security monitoring, and commercial building communication networks.
-
Printing & Imaging: Robust enough to handle the specific inrush current requirements of high-end laser printers.
