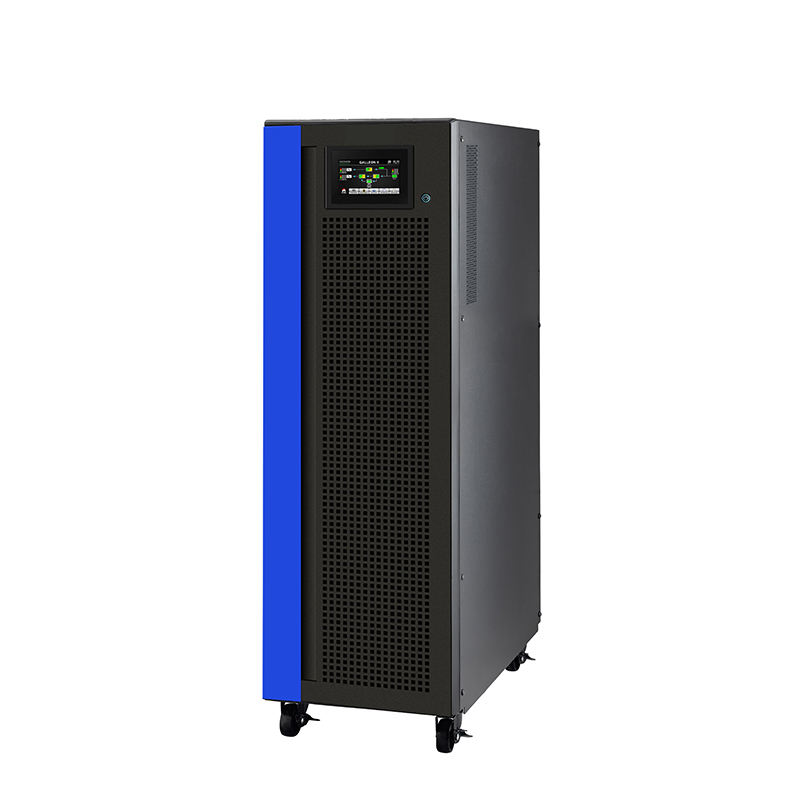

Galleon Ill 3P/3P Tower UPS 30kVA 40KVA 60kVA 100kVA 120kVA 180kVA 200kVA

PF 1.0 high-frequency UPS
Galleon ll 3P/3P 30K-60K is a true double-conversion UPS delivering high performance and reliability for critical applications.
With advanced DSP technology, output power factor 1.0, and active power factor correction, it ensures stable and efficient power.
It supports 50/60Hz frequencyconversion, ECO mode, and includes EPO and generator compatibility.
Featuring SNMP, USB, and RS-232 communications, a 3-stage extendable charger, and adjustable battery numbers, it offers flexible configuration for long-run models.
Maintenance bypass, optional parallel operation, and anoptional isolation transformer further enhance scalability, safety, and noise protection.
РАССЛЕДОВАНИЕ!
Category:
Описание

Main Features

– True double-conversion
– DSP technology guarantees high performance
– Output power factor 1.0
– Active power factor correction in all phases
– 50Hz/60Hz frequency converter mode
– ECO mode operation for energy saving (ECO)
– Emergency power off function (EPO)
– Generator compatible
– SNMP+USB+RS-232 multiple communications
– 3-stage extendable charging design for optimized battery performance
– Adjustable battery numbers for long-run model
– Maintenance bypass available
– Optional parallel operation
– Optional isolation transformer offers full isolation and complete common mode noise rejection
