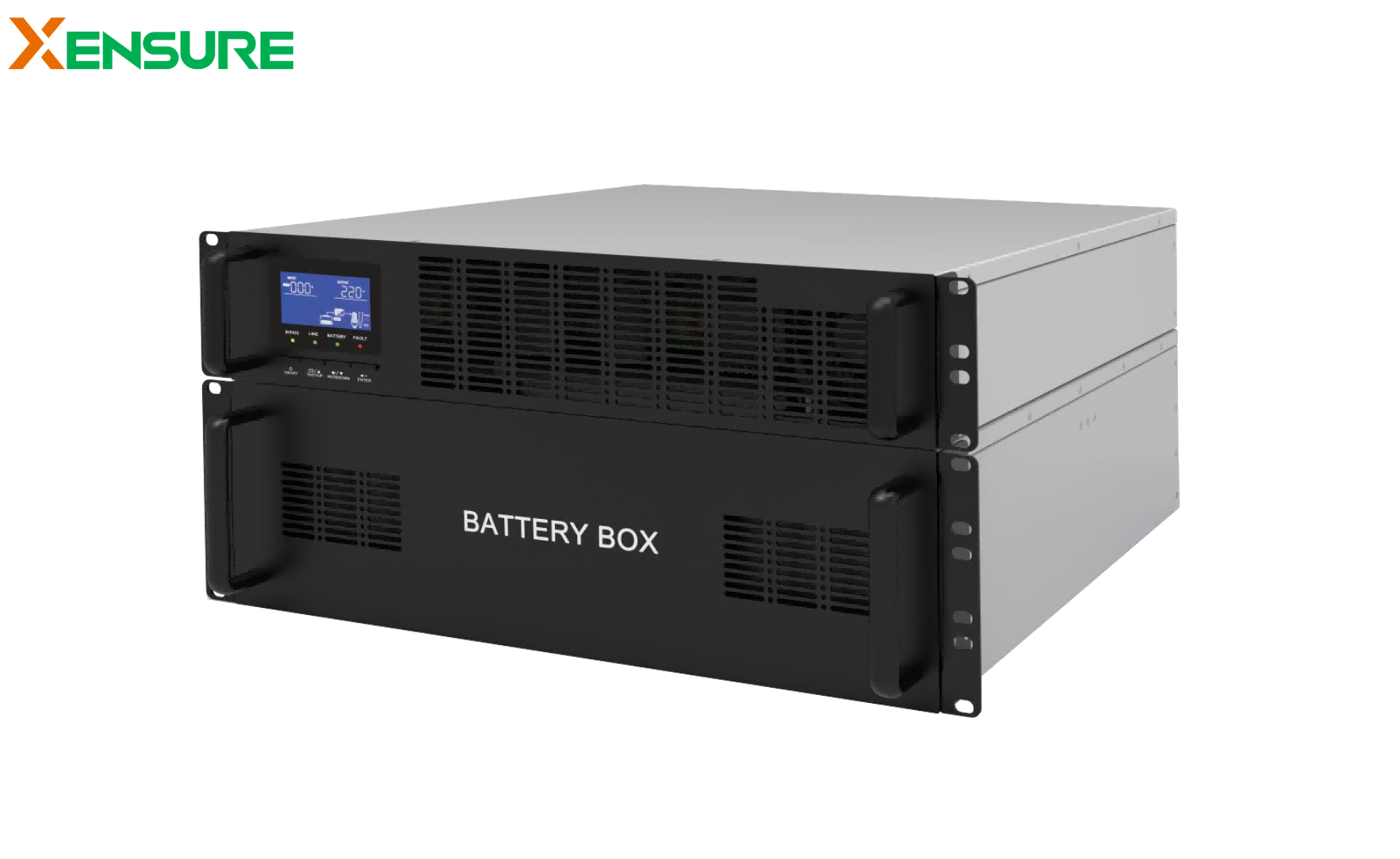

HV Series Online Rack Mount UPS, 220V, 6~10KVA, 1:1phase, PF: 0.9, with External Battery

  • High-frequency on-line double conversion: Ensures a pure sine wave output by isolating equipment from all grid disturbances.

  • DSP (Digital signal processors) control: Advanced digital control provides higher reliability and precise system performance.

  • Active input power factor correction: Features an input power factor of >0.99 to maximize energy utilization and minimize grid pollution.

  • Three-level inverter technology: Achieves higher operational efficiency and lower harmonic distortion for superior power quality.

  • Ultra-wide input range: Operates stably within a voltage range of 90V–300V and a frequency range of 40Hz–70Hz.

  • High output power factor: A 0.9 PF delivers more real power (up to 9kW for the 10kVA model) to support high-density IT loads.

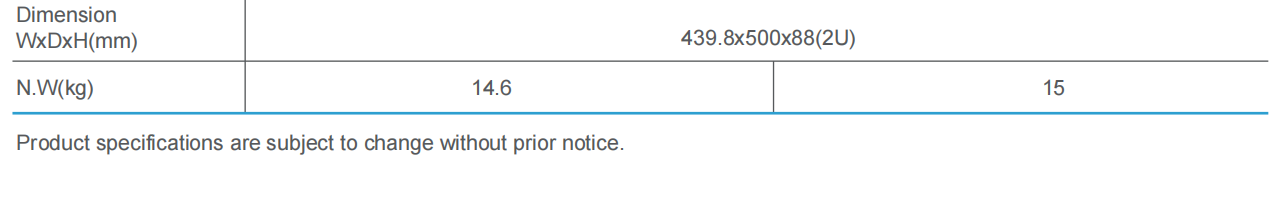

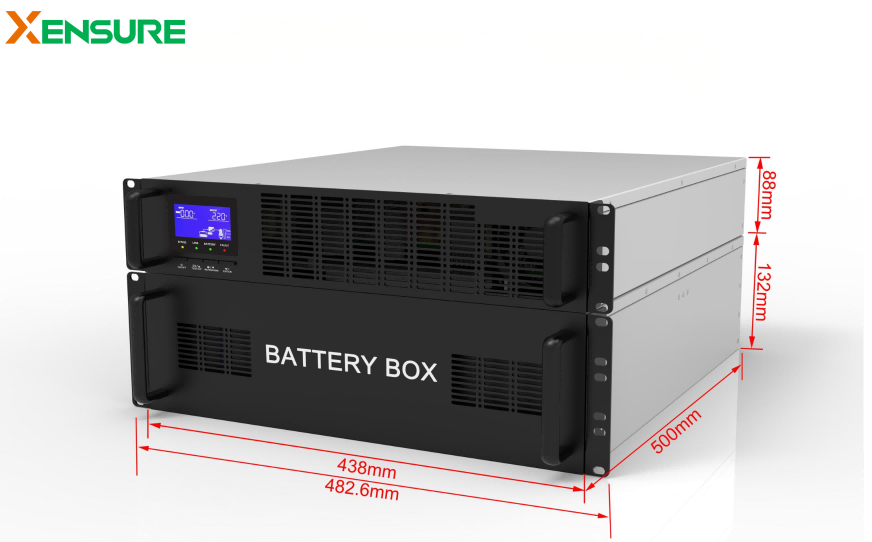

  • Space-saving 2U rack design: Standard 2U height optimizes space within server cabinets and data centers.

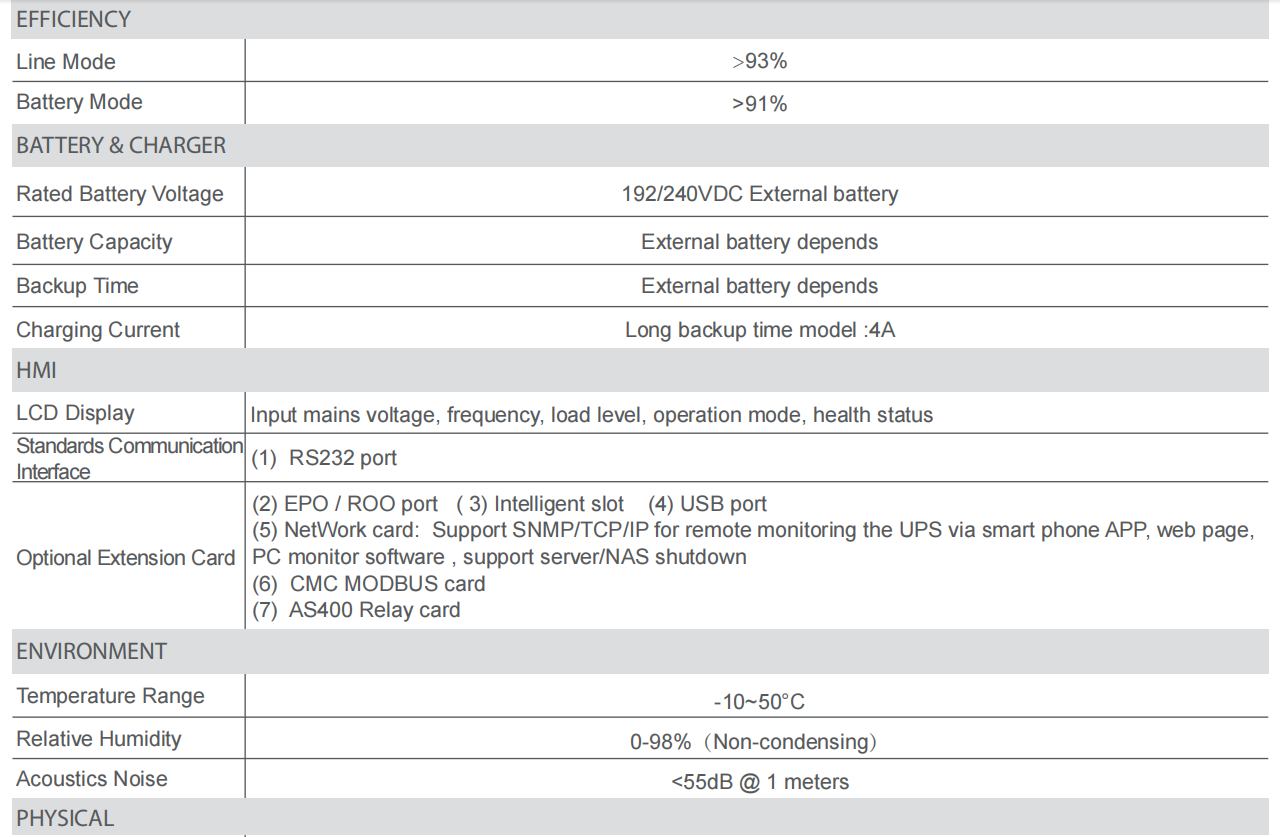

  • External battery support: Designed for long backup requirements, supporting 192/240VDC external battery configurations with a 4A charger.

ENQUIRY!
Category:
Description

The HV Series Online Rack Mount UPS (6kVA~10kVA) is a high-performance 220V power protection solution specifically designed for critical enterprise infrastructure. By combining cutting-edge three-level inverter topology with advanced DSP control, it achieves a remarkable 93% efficiency while providing stable, pure sine wave power with a 1% voltage regulation accuracy. This series is fully customizable (OEM/ODM) to support high-density power requirements (PF 0.9) and features flexible external battery configurations, making it the ideal backbone for data centers and industrial automation.

Key Features:

  • Superior Efficiency & ECO Mode: Features high line-mode efficiency and an Economic Operation Mode to significantly reduce operational costs.

  • Advanced Power Factor Correction: Active input power factor correction (>0.99) minimizes grid pollution and improves energy utilization.

  • Rugged Industrial Reliability: Designed with strong FR4 double-sided PCBs and conformal coating for durable operation in varying environments.

  • Intelligent Battery Management: Long-backup models support 192V or 240V DC voltages and 4A high-current charging to ensure rapid recovery.

  • Versatile Management: Equipped with an LCD display monitoring voltage, load, and health status, plus optional SNMP for remote web/APP monitoring.

  • Specialized Load Compatibility: Deeply customizable to accept sensitive loads like ultrasound systems and laser printers.

Application Scenarios:

  • IT Infrastructure: Ideal for 2U rack servers, enterprise-level network switches, and critical storage systems.

  • Medical Diagnostic Systems: Provides clean, isolated power for sensitive ultrasound and monitoring equipment.

  • Industrial Control: Reliable protection for 220V industrial PCs, PLCs, and automated production control hubs.

  • Financial & Retail: Ensures 24/7 uptime for POS systems, security surveillance, and central communication nodes.

  • Precision Laboratories: Safeguards expensive analysis instruments from grid surges and power fluctuations.
