LV Series Online Rack Mount UPS, 1~3KVA, 1:1phase, PF: 0.9, 110V In/ 110V Out

  • High-Frequency Online Double Conversion: Ensures continuous, clean power by converting AC to DC and back to AC, isolating equipment from all grid disturbances.

  • Advanced DSP Control: Utilizes Digital Signal Processors to provide precise control, high reliability, and superior performance.

  • Wide Input Adaptability: Features a broad input voltage range of 60-145V and frequency range of 40-70Hz, ideal for unstable grid conditions.

  • High Output Power Factor: A power factor of 0.9 provides more real power (up to 2.7kW for the 3kVA model) to support modern, high-density IT loads.

  • Active Power Factor Correction: Input power factor is greater than 0.99, minimizing electrical interference and improving energy efficiency.

  • Generator Compatible: Stable performance and frequency auto-sensing allow for seamless integration with various generator sets.

  • Space-Saving 2U Rack Design: Compact 2U form factor fits easily into standard server racks, optimizing space in data centers and server rooms.

  • Smart Management & Communication: Standard RS232 port with optional USB, SNMP, and AS400 cards for remote monitoring and automated server/NAS shutdown.

ENQUIRY!
Category:
Description

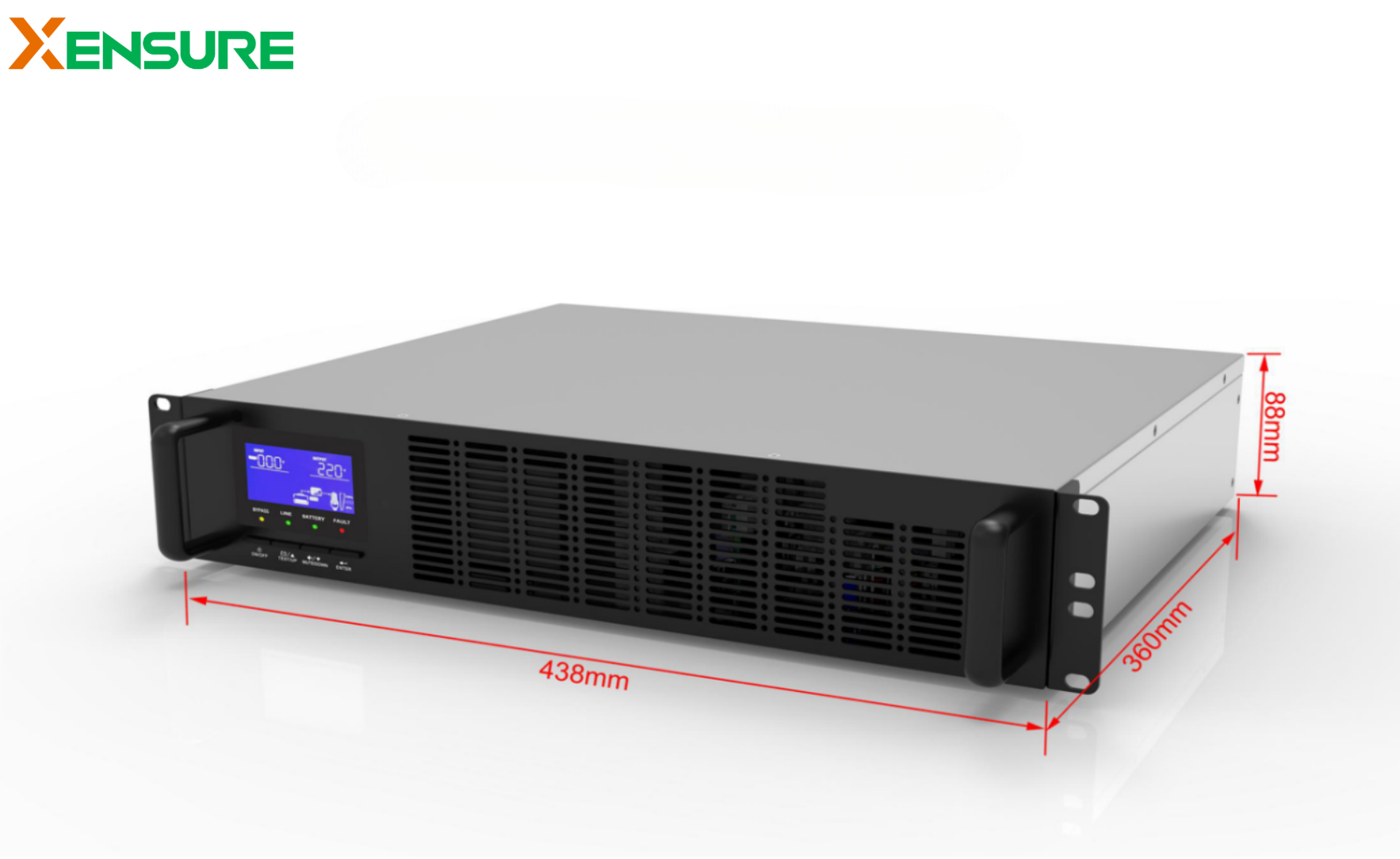

The LV Series is a professional-grade Online Rack Mount UPS designed specifically for 110V/120V power environments, offering reliable protection for critical equipment from 1kVA to 3kVA. Using advanced high-frequency online double conversion technology and DSP control, it delivers a pure sine wave output with a 0.9 power factor to ensure your most sensitive electronics stay powered and protected. Its versatile design supports 110V, 115V, 120V, and 127VAC configurations, making it the ideal choice for North American and other 110V-standard markets requiring stable, rack-integrated power backup.

Key Features:

  • Reliable Construction: Built with a high-strength glass fiber (FR4) double-sided PCB and conformal coating to ensure long-term durability and resistance to environmental factors.

  • Economic Operation Mode (ECO): Features an ECO mode that improves system efficiency and reduces energy costs when grid conditions are stable.

  • Frequency Converter Functionality: Can operate as a frequency converter (50Hz to 60Hz or vice versa), providing flexibility for specialized equipment needs.

  • Intelligent Battery Management: Supports cold start functionality and can even start up without a battery connected in specific scenarios.

  • Advanced HMI: Equipped with a clear LCD display that shows real-time input voltage, frequency, load level, operation mode, and system health status.

  • Comprehensive Protection: Features internal input circuit breakers and advanced monitoring cards to safeguard against overloads and grid surges.

  • Customization Ready: Specifically designed to accept deep customization to meet unique OEM or industrial project requirements.

Application Scenarios:

  • IT & Networking Racks: Perfect for protecting servers, switches, and storage systems in 110V data centers and server rooms.

  • Healthcare & Laboratories: Supports sensitive diagnostic loads such as ultrasound systems and laboratory monitoring equipment.

  • Commercial Printing: Robust enough to handle the specific power demands and inrush currents of high-end laser printers.

  • Industrial Automation: Ideal for 110V control panels, industrial PCs, and communication equipment in manufacturing facilities.

  • Professional Audio/Video: Provides clean, isolated power for studio racks, broadcasting equipment, and sensitive AV processors.
