XST-RM Series Rack-Mounted LiFePO4 Battery Pack 48V/51.2V 100Ah

  • Standard 19-inch Design: Specifically engineered for standard server racks, making it easy to integrate into IT and power environments.

  • Advanced BMS Management: Features an independent high-performance BMS to scientifically manage and protect cells.

  • Reliable Cycle Performance: Delivers over 3,000 cycles at 80% DOD, ensuring years of stable operation.

  • Parallel Expansion: Supports connecting multiple batteries in parallel for flexible capacity expansion.

  • Comprehensive Connectivity: Fully compatible with mainstream inverters via RS485 and CAN communication.

  • Wide Operating Range: Performs consistently in temperatures ranging from -20°C to 60°C.

ENQUIRY!
Categories: ,
Description

The XST-RM Series (RM4800 / RM5120) is a professional rack-mounted LiFePO4 battery pack designed for seamless integration into modern infrastructure. With a nominal capacity of 100Ah and a standard 5kW power output, it provides a stable and high-density energy source for residential complexes and business facilities. Its 19-inch form factor is ideal for those looking to build scalable battery arrays within standard cabinets. Backed by intelligent BMS monitoring and green chemistry, the XST-RM series is a reliable, environmentally friendly power partner.

Key Features:

  • Intelligent Sorting: Cells are matched using intelligent sorting during manufacturing to ensure high precision and system reliability.

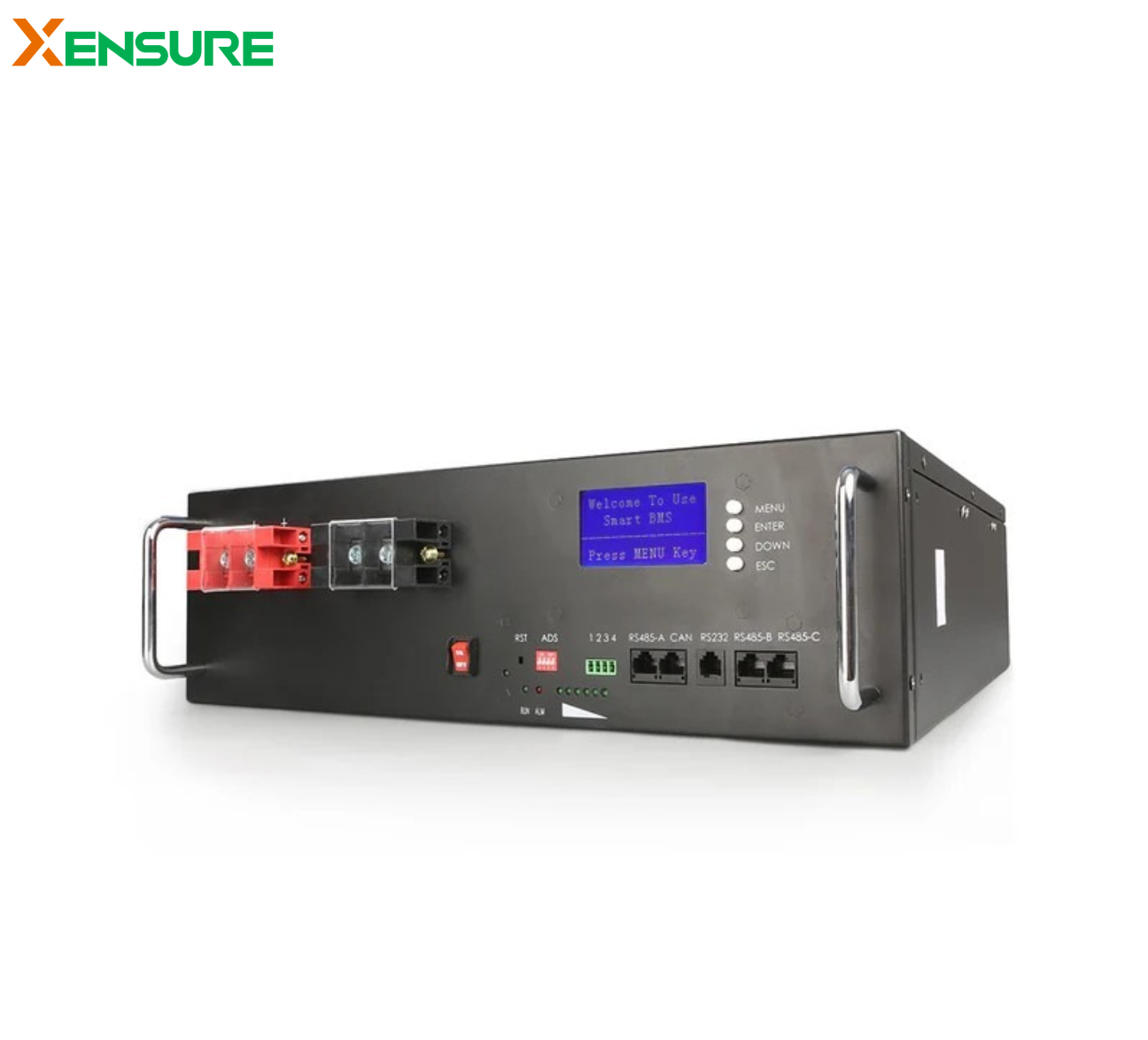

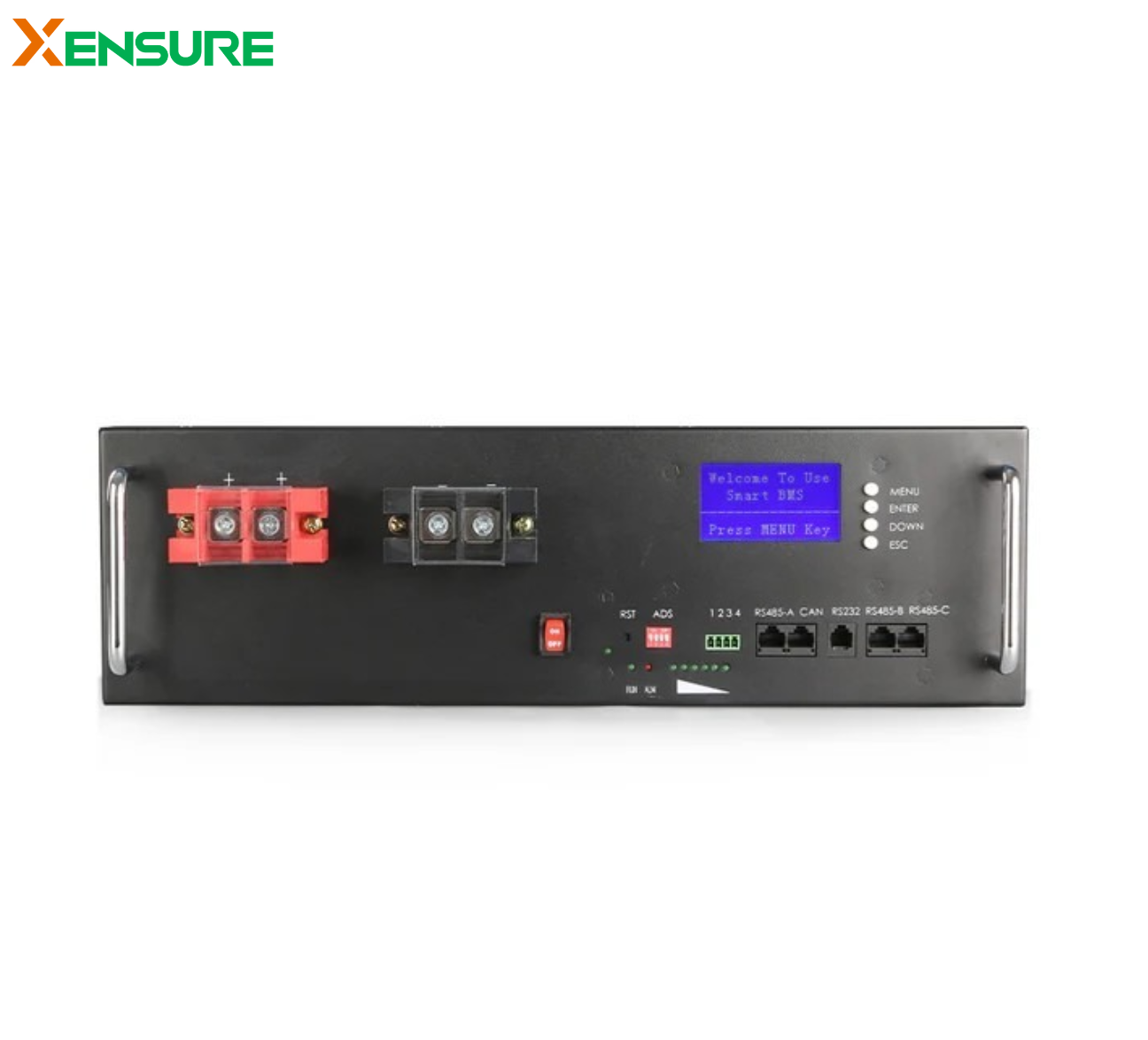

  • Real-time Monitoring: Equipped with an LCD display and multiple status indicators (SOC, ALM, RUN) for instant system health checks.

  • High Energy Density: Delivers significant power in a compact 3U height, saving valuable installation space.

  • Maintenance Friendly: Features a reset button and easy-access ports for simplified field maintenance.

Application Scenarios:

  • Data Centers & Server Rooms: Reliable backup for 48V/51.2V DC power systems.

  • Base Stations: Perfect for telecommunications infrastructure requiring long-life energy storage.

  • Modular Home Storage: Builds high-capacity energy stacks in a centralized rack cabinet.

Specification:

Category Parameter Model: XST-RM5120 Model: XST-RM4800
Electrical Specification Rated battery voltage 51.2V 48V
Rated power 5000W 5000W
Nominal capacity 100Ah 100Ah
Combination 16S1P 16S1P
Cycle life ≥3000 cycles @80%DOD @35°C ≥3000 cycles @80%DOD @35°C
Monthly self-discharge 3%/month 3%/month
Charging efficiency ≥97% ≥97%
Discharging efficiency ≥98% ≥98%
Charging Standard Recommended charging voltage 57.6V 57.6V
Recommended charging current 20A 20A
Maximum charging voltage 58.4V 58.4V
Maximum charging current 100A 100A
Discharging Standard Recommended discharge current 50A 50A
Maximum discharge current 100A 100A
Discharge cut-off voltage 43.2V 43.2V
Physical Dimensions (W*D*H) (mm) 442*440*133mm 442*440*133mm
Package size (W*D*H) (mm) 557*519*219mm 557*519*219mm
Net weight (kg) 45kg 45kg
Gross weight (kg) 49kg 49kg
IP protection IP30 IP30
Shell material Metal Metal
Optional functions Anti-theft, LCD Anti-theft, LCD
Environment Charging temperature range 0°C – 45°C 0°C – 45°C
Operating temperature range -20°C – 60°C -20°C – 60°C
Storage temperature 0°C – 40°C 0°C – 40°C
Humidity 10% to 65% RH (NO condensing) 10% to 65% RH (NO condensing)
